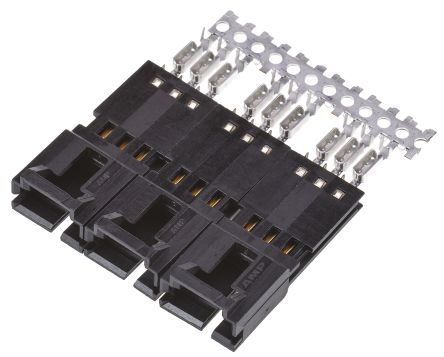

5-103946-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 3POS .100 POLAR 30AU Shrouded pin ass. 2.54mm straight 2way Headers & Wire Housings PIN ASSEMBLY 3P Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 3Housing Type = PinContact Type = PinSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Shroudedpinass.2.54mmstraight2way TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 公 IDC 连接器 , 电缆安装 5X3 MTE SHRD PIN SR POL .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 55 | 工厂包装数量 | 55 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 267 V | 接触电阻 | 15 mohm |
| 输入电阻 | 5000 | 连接器阻抗 | 刺破式压接 (IDC), 压接 |
| 最大额定电流 | 3A | 保护额定电压（VPR） | 600 V |
机械参数
| 颜色 | Black | 深度 | 24.13 mm |
| 间距 | 2.54 mm | 高度 | 6.6 mm |
| 长度 | 5.03 mm [ 1.98 in ] | 锁定类型 | Latch |
| 包装方式 | Tube | 导线类型 | Ribbon Cable |
| 壳体颜色 | 黑色 | 导线线规 | 22-26 AWG |
| 方向 | 直 | 排间距 | 2.54 mm |
| 端接方式 | IDT | 触头类型 | Male Pin |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 接触镀层 | Gold Over Nickel | 安装样式 | Wire |
| 排数 | 1 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 包装数量 | 5 | 面板安装类型 | 不带 |
| 主要材料 | IndustrialRectangular | 端接排数 | IDC |
| 电缆端接方式 | IDC | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 位数 | 3 | 兼容外壳尺寸（如TM-700等） | 配合母端 |
| 安装孔直径 | 带有 | 典型触点布局 | 同轴 |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 带有 |
产品信息
| 备注 | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | 类型 | IDC Connector |
| 连接器性别 | PIN | 系列 | AMPMODU MTE |
| 产品特性 | Closed End | 制造商全称 | AMPMODU |
| 产品子类型 | Headers | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | +105°C |
文档与媒体
相关型号
