103960-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 3POS .100 26-30 15GOLD Headers & Wire Housings RCPT 3 POS 15 AU Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 3Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 8X3 MTE RCPT SR LATCH .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 72 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 267 V | 接触电阻 | 15 mohm |
| 输入电阻 | 5000 | 连接器阻抗 | 刺破式压接 (IDC), 压接 |
| 最大额定电流 | 3 A | 保护额定电压（VPR） | 600 VAC |
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 2.54 mm | 高度 | 5.08 mm [ .2 in ] |
| 长度 | 60.96 mm [ 2.4 in ] | 锁定类型 | 锁闩 |
| 包装方式 | Tube | 导线类型 | Ribbon Cable |
| 壳体颜色 | 黑色 | 导线线规 | 26-30 AWG |
| 排间距 | 2.54 mm | 端接方式 | IDT |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 1 |
| 压力（PSI） | 标准 | 插入件材料 | 铜合金 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 7.56 mm | 包装数量 | 72 |
| 面板安装类型 | 不带 | 电缆端接方式 | IDC |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 3 | 绝缘直径 | 1.37 mm [ .054 in ] |
| 位数 | 3 | 兼容外壳尺寸（如TM-700等） | 与接头配合 |
| 安装孔直径 | 带有 | 典型触点布局 | 同轴 |
| 接触镀层厚度 | 15µin (0.38µm) | 静电放电屏蔽 | 带有 |
| 接触件镀层 - 插柱（配合端） | 亮光 | ||
产品信息
| 备注 | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | 类型 | IDC Connector |
| 连接器性别 | RCP | 系列 | AMPMODU MTE |
| 产品特性 | Closed End | 产品子类型 | Receptacle Assemblies |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | - 65 C to + 105 C |
文档与媒体
相关型号
5-103945-2
te connectivity / amp
Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 3POS .100 POLAR 15AU Headers & Wire Housings PIN ASSEMBLY 3P Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Pin AssembliesWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR, PLUG, 3POS, 2.54MM AMPMODUHousing,5X3MTEShroudedPinAssy,SingleRow,.100,26-22AWG TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 电缆安装 公 IDC 连接器 5X3 MTE SHRD PIN SR LATCH .100
103906-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 3POS 30AU Headers & Wire Housings LATCHING HDR SHRD 3P w/o hold down Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 03 MTE HDR SRRA LATCH .100CL
103949-2
te connectivity / amp
Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 3POS .100 26-30AWG Headers & Wire Housings 5X3 MTE SHRD PIN SR LATCH .100 .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingPreloadedNumber of Positions = 3Housing Type = PinContact Type = PinSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 5X3 MTE SHRD PIN SR LATCH .100
2-103669-9
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 3POS T/H TIN Headers & Wire Housings HDR VT 3POS T/H TIN .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 03 MTE HDR SRST LATCH W/HLDWN
5-103635-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 3POS 15AU TE Connectivity MTE Series 2.54mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings LATCHING HDR SHRD 3P w/o hold down Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Connector Type:Wire-to-Board AMPMODUMTER/AHDAY,03MTEHDRSRRALTCH.100CLLF TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 (1排) 直角 PCB 针座 , 焊接端接, 3A, 通孔 03 MTE HDR SRRA LTCH.100CL LF
104348-1
te connectivity / amp
Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 3POS R/A GOLD
5-103735-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 3POS 30AU TE Connectivity MTE Series 2.54mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCH HDR W/O SWAGE 3 Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:ConnectorConnector Type = Header - Pin2.54 mm CenterlineRow-to-Row Spacing = 2.54 mm3 PositionsSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 3POS, 2.54MM MTEHEADERASSY,03MTEHDRSRSTLATCH.100CL TE Connectivity AMPMODU MTE 系列 2.54mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 03 MTE HDR SRST LATCH .100CL
103638-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 3POS 15AU Header 3 way pin 2.54mm IDC AmpModu Headers & Wire Housings LTCH HDR W/O SWAGE 3 Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Header;Shrouded;Vertical;Brass;Thermoplastic;3;0.1in.;Gold;0.025in. 03 MTE HDR SRST LATCH .100CL
103669-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 3POS PCB TIN Headers & Wire Housings LTCHNG HDR W/SWAGE 3 Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Header;3;3A;600V;MTE(IDC);1;Vertical;0.100in.;5000Megohms;Brass 03 MTE HDR SRST LATCH W/HLDWN
146282-3
te connectivity / amp
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 3P BRKAWAY VERT HDR 1000 .100 inch AMPMODU Headers CONN HEADER B/A 3POS SL PCB TIN 03 MODII HDR SRST B/A .100CL 03 MODII HDR SRST B/A .100CL Search Keywords:board to board, AMPMODU, pcb connectors,
103946-2
te connectivity / amp
Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 3POS .100 POLAR 30AU Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Pin AssembliesWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 5X3 MTE SHRD PIN SR POL .100CL
103951-2
te connectivity / amp
Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 3POS .100 22-26 15AU Headers & Wire Housings 5X3 MTE PIN SR RIBBED .100CL 5X3 MTE PIN SR RIBBED .100CL 5X3 MTE PIN SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
103950-2
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE .100 AMPMODU Headers, Housings & Contacts CONN PLUG 3POS .100 POLAR TIN Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip
146278-3
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE .100 inch AMPMODU Headers CONN HEADER BRKWAY 3POS SGL .100

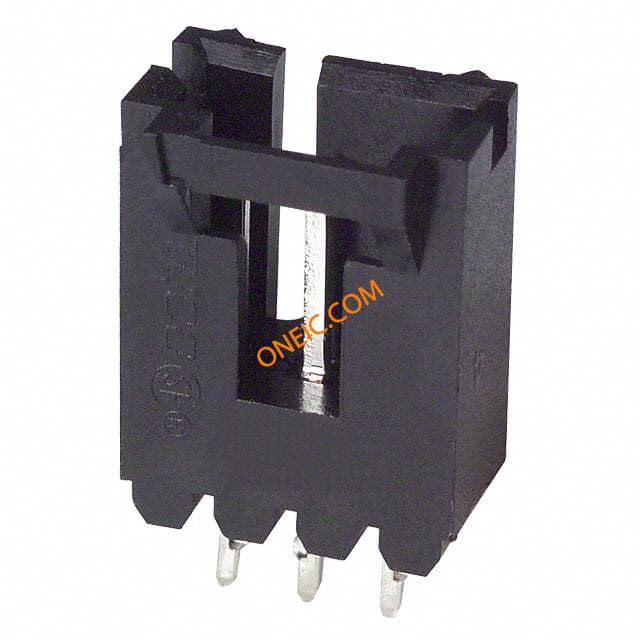

5-103669-2
