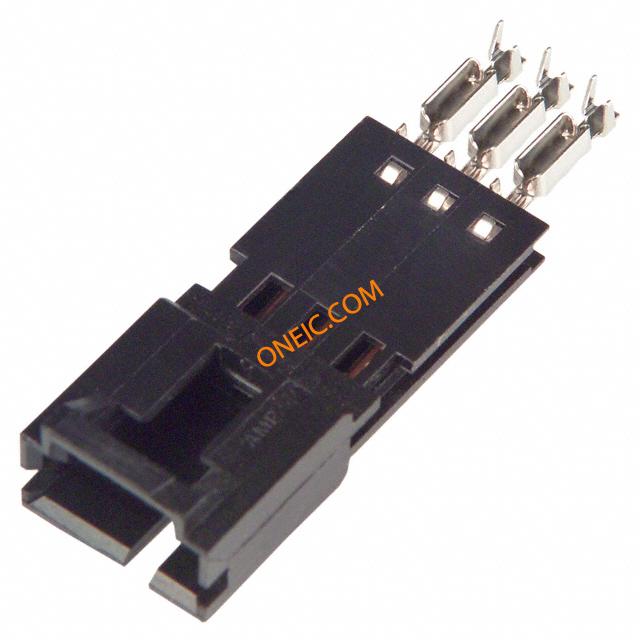

点击放大查看
5-103945-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 3POS .100 POLAR 15AU Headers & Wire Housings PIN ASSEMBLY 3P Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Pin AssembliesWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR, PLUG, 3POS, 2.54MM AMPMODUHousing,5X3MTEShroudedPinAssy,SingleRow,.100,26-22AWG TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 电缆安装 公 IDC 连接器 5X3 MTE SHRD PIN SR LATCH .100 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 55 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - AMPMODU MTE Series | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.005 | 包装方式 | Tube |
| 导线类型 | Ribbon Cable | 导线线规 | 22-26 AWG |
| 排间距 | 2.54 mm | 端接方式 | IDT |
| 触头类型 | Male Pin | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug | 接触镀层 | Gold Over Nickel |
| 安装样式 | Wire | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 电缆端接方式 | IDC | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 接触件端接 | :Crimp | 位数 | 3 |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | PIN |
| 系列 | AMPMODU MTE | 产品特性 | Closed End |
| 产品子类型 | Headers | ||
环境参数
| 工作温度 | - 65 C to + 105 C | ||
