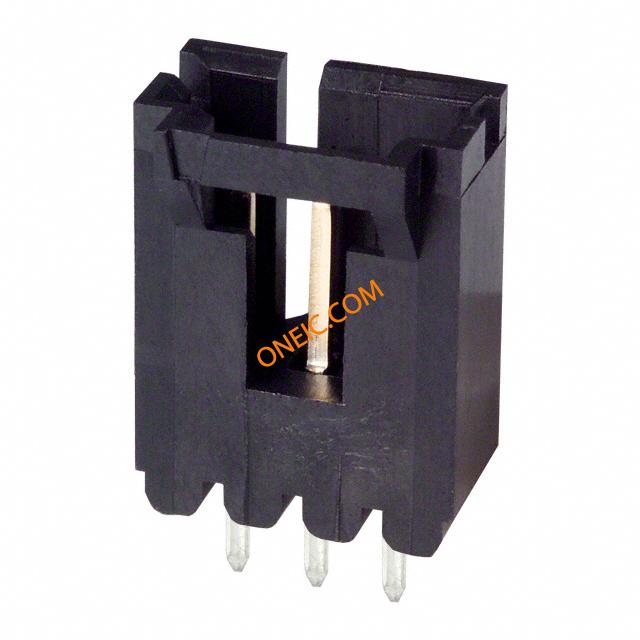

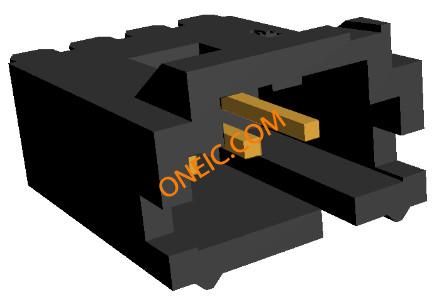

103638-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 3POS 15AU Header 3 way pin 2.54mm IDC AmpModu Headers & Wire Housings LTCH HDR W/O SWAGE 3 Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Header;Shrouded;Vertical;Brass;Thermoplastic;3;0.1in.;Gold;0.025in. 03 MTE HDR SRST LATCH .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 1 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准 | ULListedFileNo.E28476,CSACertifiedFileNo.LR7189 |
| 认证机构 | CSA,UL | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 开关功能 | Latched | 接触电阻 | 15 mohm |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3A |
| 绝缘电阻 | 5000 MOhms | 直流开关电压 | 600V |
| 保护额定电压（VPR） | 600 V | ||
机械参数
| 颜色 | Black | 深度 | 6.98 mm |
| 间距 | 2.54 mm | 高度 | 13.59 mm |
| 长度 | 10.16 mm [ .4 in ] | 包装方式 | Tube |
| 端口尺寸 | 0.025in. | 壳体颜色 | 黑色 |
| 引脚样式 | 正方形 | 排间距 | 2.54 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚长度（针脚） | 0.13" | 外壳颜色 | Black |
| 安装类型 | Through Hole | 行程角度 | Straight |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 触点时序 | Without | 安装样式 | Through Hole |
| 排数 | 1 | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 壳体材料 | Glass Fibre Reinforced Thermoplastic |
| 总长度 | 10.16 mm | 安装特性 | 压具 |
| 包装数量 | 54 | 面板安装类型 | 垂直 |
| 主要材料 | InterconnectSystem | 插针孔直径 | 0.1" |
| 端接样式 | Through Hole | 第一连接器类型 | 带罩 |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 端接表面处理 | 带有 | 接触件尾部长度 | 2.54 µm [ 100 µin ] |
| 位数 | 3 | 兼容外壳尺寸（如TM-700等） | 母端护套组件 |
| 触头长度-柱 | 3.3 mm [ .13 in ] | 触点镀层 | Gold |
| 安装孔直径 | 0.035" | 接触件表面处理 - 配合 | 锡铅 |
| 接触长度 - 配合 | 0.230" (5.84mm) | 端子柱长度 | 5.84 mm [ .23 in ] |
| 接触镀层厚度 | 15µin (0.38µm) | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | MTE |
| 已删除 | Not Compliant | 产品特性 | Breakaway,IDC |
| 制造商全称 | AMPMODU/MTESeries | 架构类型 | 否 |
| 产品子类型 | Headers | 矩阵（列×行） | 0.1in. |
| 加载位置数 | All | ||
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
103959-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 3POS .100 26-30 TIN Headers & Wire Housings 8X3 MTE RCPT SR LATCH .100CL 8X3 MTE RCPT SR LATCH .100CL
103969-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Headers & Wire Housings 8X3 MTE RCPT SR RIBBED .100CL .100 AMPMODU Headers, Housings & Contacts CONN RECPT 3POS .100 22-26 15AU
103958-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 3POS .100 POLAR 30AU Headers & Wire Housings RECEPTACLE ASSY 3P Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,8X3MTERCPTSRLATCH.100CL 8X3 MTE RCPT SR LATCH .100CL
5-103958-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 3POS .100 POLAR 30AU MTE Housing,receptacle,IDC,3way Headers & Wire Housings RECEPTACLE ASSY 3P Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 2.54MM MTERECPASSY,8X3MTERCPTSRLATCH.100CL TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 母 IDC 连接器 , 电缆安装 8X3 MTE RCPT SR LATCH .100CL
104257-2
te connectivity / amp
Conn Housing RCP 3 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 3POS .1" POL UNLOAD 3 way MTE Receptacle Housing Headers & Wire Housings RECEPTACLE ASSY 3P Conn Housing RCP 3 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 3WAY ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) Plug; wire-board; female; PIN:3; w/o terminals; 2.54mm; for cable 03 MTE RCPT HSG SR LATCH .100
103648-2
te connectivity / amp
Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Headers & Wire Housings 03 MTE RCPT HSG SR R .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 3POS .100 UNLOADED Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 2 AMPMODU03MTERCPTHSGSRRIB.100CL TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 母 连接器 , 电缆安装 03 MTE RCPT HSG SR RIB .100CL
103960-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 3POS .100 26-30 15GOLD Headers & Wire Housings RCPT 3 POS 15 AU Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 3Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 8X3 MTE RCPT SR LATCH .100CL
487526-2
te connectivity / amp

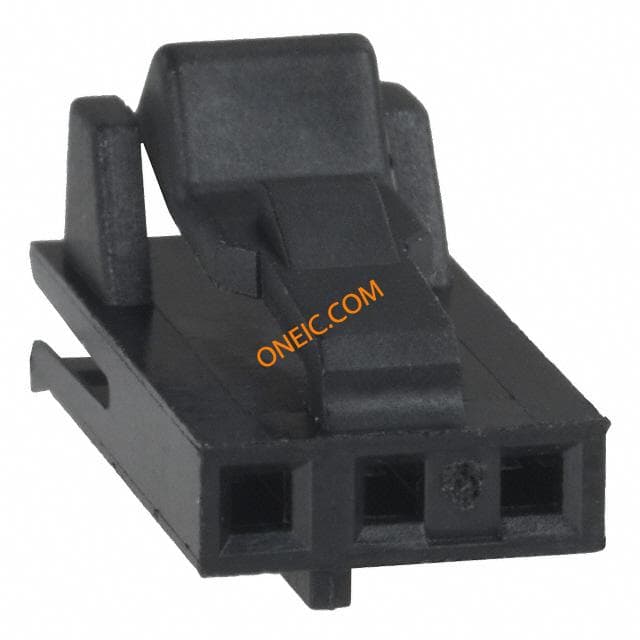

Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 3POS.100 SLIM W/LATCH FFC & FPC Connectors 003 HOUSING FFC RCPT Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 3Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 3POS, 1ROW CONNECTOR,RECEPTACLEHOUSING,FLEXIBLEFILM,3POS,2.54MM,SLIMLINE,SINGLER 003 HOUSING FFC RCPT 100CL SR
