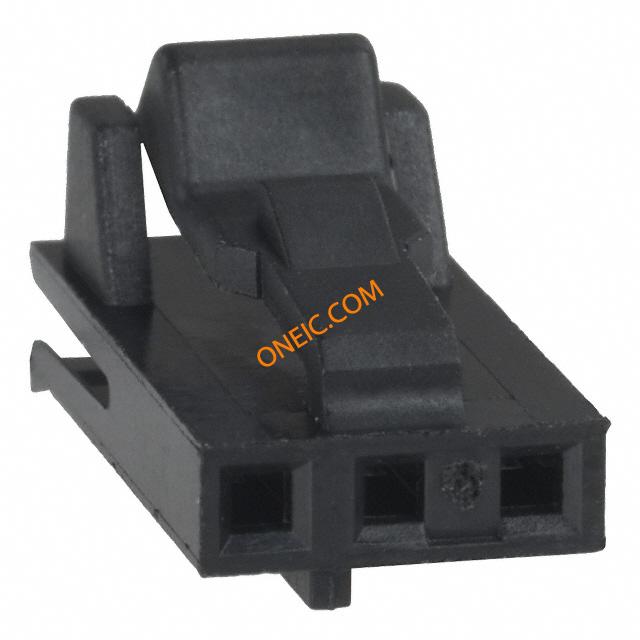

487526-2

点击放大查看

487526-2

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 3POS.100 SLIM W/LATCH FFC & FPC Connectors 003 HOUSING FFC RCPT Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 3Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 3POS, 1ROW CONNECTOR,RECEPTACLEHOUSING,FLEXIBLEFILM,3POS,2.54MM,SLIMLINE,SINGLER 003 HOUSING FFC RCPT 100CL SR
分类
开关
对参数有疑问？问 AI 助手

商业参数

其他名称4875262产品类别FFC & FPC Connectors
标准包装数量Bulk工厂包装数量1000

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级Yes

电气参数

额定电压300V最大额定电流2A
最小供电电压300VAC

机械参数

颜色Black深度13.72 mm
间距2.54 mm重量0.000001
包装方式Bulk第二连接器With
安装类型Straight连接器类型Slimline
安装样式Cable排数1
连接器用途Receptacle锁定特性Latch
总宽度:0.294"壳体材料Thermoplastic
总长度2.54 [0.100]安装特性Without
面板安装类型Without主要材料FFC
FFC/FCB厚度0.05-0.13mm配接方向Without
触点数3位数3

产品信息

类型Housing连接器性别RCP
产品特性Latch Lock制造商全称AMP/Slimline
产品子类型Housing连接类型FFC Cable

环境参数

工作温度-65°C ~ 105°C

文档与媒体

在线文档
487526-2?RQPN=487526-2
