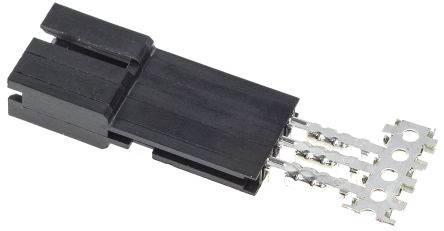

5-103947-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 5X3 MTE SHRD PIN SR LATCH .100 Headers & Wire Housings 5X3 MTE SHRD PIN SR LATCH .100 Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingHousing Type = Housing - PinHousing Accepts Contact Type = Pin2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 公 印刷电路板管座 , 电缆安装 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 660 | 工厂包装数量 | 55 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 267 V | 输入电阻 | 5000 |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 A |
| 保护额定电压（VPR） | 600 V | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 锁定类型 | Latch | 包装方式 | Tube |
| 导线类型 | Ribbon Cable | 壳体颜色 | 黑色 |
| 导线线规 | 26-30 AWG | 方向 | 直 |
| 排间距 | 2.54 mm | 端接方式 | IDT |
| 触头类型 | Male Pin | 第二连接器 | With |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 接触镀层 | Tin Over Nickel | 安装样式 | Wire |
| 排数 | 1 | 高度（英寸） | .26 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 包装数量 | 5 |
| 面板安装类型 | 不带 | 端接排数 | 压接 |
| 电缆端接方式 | IDC | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 位数 | 3 | 兼容外壳尺寸（如TM-700等） | 配合母端 |
| 安装孔直径 | 带有 | 典型触点布局 | 同轴 |
| 接触镀层厚度 | 100µin (2.54µm) | 静电放电屏蔽 | 带有 |
产品信息
| 备注 | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | 类型 | IDC Connector |
| 连接器性别 | PIN | 系列 | AMPMODU MTE |
| 产品特性 | Closed End | 产品子类型 | Headers |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | - 65 C to + 105 C |
文档与媒体
