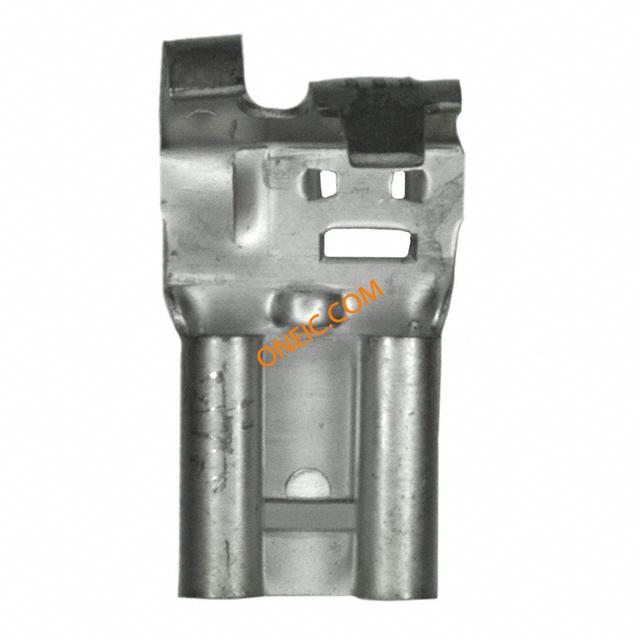

42511-2
| 制造商 | |
| 描述 | Quick Disconnect Terminal 12-18AWG RCP 17.01mm 7.62mm Tin Strip on Reel Terminals .25 FLAG FAST RCPT FASTON Uninsulated Receptacles & Housings CONN RCPT FLG FAST 12-18AWG .250 Quick Disconnect Terminal 12-18AWG RCP 17.01mm 7.62mm Tin Strip on Reel Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = FlagInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TERMINAL, FLAG DISCONNECT, 0.25IN, CRIMP FSTCOMMFLGRCPTSTP,250FLAGFASTRCPT18-12TPBR FASTON 250 FLAG REC 18-12 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 4,000 | 工厂包装数量 | 4000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 深度 | 7.62 mm | 表面处理 | Tin |
| 长度 | 0.67 in | 重量 | 0 |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.41 [0.016] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 插片长度 | 0.305" (7.75mm) | 导线线规 | 18-12 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 0.25 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Angled - 90°, Flag |
| 连接器类型 | :Flag Disconnect | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Flag |
| 箔压接区域 | Tab-Lok | 插入力 | Normal |
| 触头材料 | Brass | 绝缘颜色 | :Uninsulated |
| 总长度 | Budget | 包装数量 | Strip |
| 绝缘高度 | Insulation Support | 端接样式 | Quick Disconnect Tabs |
| 绝缘直径 | 2.79-5.33 [.110-.210] | 线规或范围 - AWG | :18AWG |
| 线规或范围 - mm² | 0.80-3.00² [18-12] | 第二连接器安装特性 | No |
产品信息
| 类型 | Flag Receptacle | 连接器性别 | Female |
| 系列 | 250 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
