点击放大查看

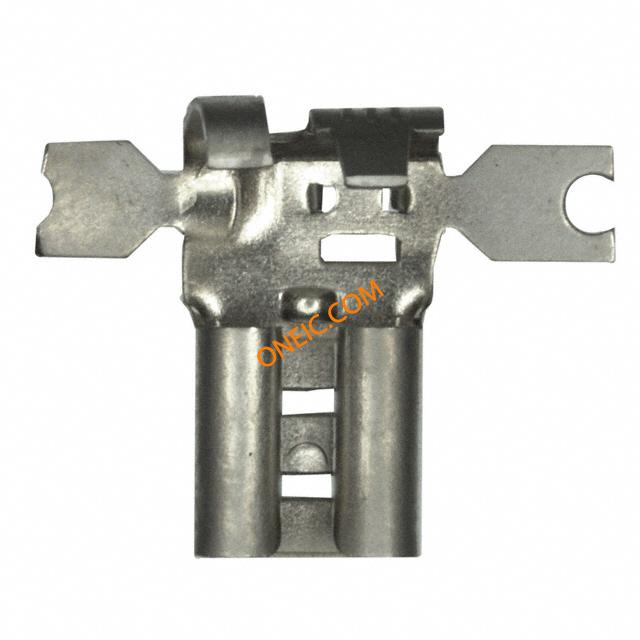

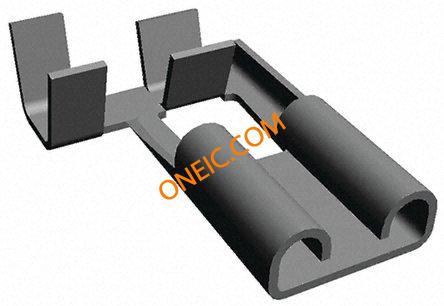

42404-1
| 制造商 | |
| 描述 | Quick Disconnect Terminal 12-18AWG RCP 17.14mm 7.62mm Nickel Strip on Reel Terminals .250 FAST FLG REC 18 FASTON Uninsulated Receptacles & Housings CONN RECPT FLG FAST 12-18AWG.250 Receptacle terminal, flag, FASTON 250 Quick Disconnect Terminal 12-18AWG RCP 17.14mm 7.62mm Nickel Strip on Reel Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = FlagInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TERMINAL, FLAG DISCONNECT, 0.25IN, CRIMP FASTON 250 FLAG REC 18-12 AWG NIPST |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 3,500 | 工厂包装数量 | 3500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Recognized | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 颜色 | Not Required | 深度 | 7.62 mm |
| 表面处理 | Nickel | 重量 | 0.0001 |
| 材料（通用） | Steel | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.41 [0.016] |
| 电缆类型 | Stranded | 绝缘类型 | Not Insulated |
| 插片长度 | 0.305" (7.75mm) | 导线线规 | 18-16 |
| 端接方式 | Crimp | 基体材料 | Steel |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 0.25 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Angled - 90°, Flag |
| 接触镀层 | Nickel | 壳体镀层 | Nickel |
| 连接器样式 | Flag | 箔压接区域 | Tab-Lok |
| 插入力 | Normal | 触头材料 | Steel |
| 总长度 | Premier | 包装数量 | Strip |
| 绝缘高度 | Insulation Support | 端接样式 | Quick Disconnect Tabs |
| 绝缘直径 | 2.80-5.30 [.110-.208] | 线规或范围 - mm² | 0.80-3.00² [18-12] |
| 第二连接器安装特性 | No | ||
产品信息
| 类型 | Flag Receptacle | 连接器性别 | Female |
| 系列 | 250 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
文档与媒体
相关型号
180984
TE Connectivity AMP Connectors
Connector Accessories Insulation Boot 1 POS Polyamide 6.6 Natural Loose Piece Headers & Wire Housings 1P HSG FAST TAB .250 CONN HOUSING FAST TAB 1POS .250 Opaque insulation boot for 6.3mm flag Terminals 1P HSG FAST TAB .250 Connector Accessories Insulation Boot 1 POS Polyamide 6.6 Natural Loose Piece Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING COVER, FASTON, FLAG, NATURAL, PK10 FASTONINSULATORFLAG Terminals cover; female; for push-on 6.3mm connectors; natural TE Connectivity FASTON .250 系列 尼龙 66 压接外罩
170891-1
te connectivity / amp
Connector Accessories Insulation Sleeve Soft Vinyl Chloride Clear Loose Piece FASTON Uninsulated Receptacles & Housings CONN INSULATION SLEEVE FLAG .250 FASTON .250,Connector sleeve,natural Terminals SLEEVE FOR 250 F FASTON Uninsulated Receptacles & Housings Product Highlights:Insulation SleeveInsulation Diameter = 3.20 [.126] Max. mm [in]Soft Vinyl Chloride MaterialHousing Color = NaturalLine = FASTON .250Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TE Connectivity 18.5mm 压接端子盖
170891-2
te connectivity / amp
Connector Accessories Insulation Sleeve Soft Soft Vinyl Chloride Clear Loose Piece FASTON Uninsulated Receptacles & Housings CONN INSULATION SLEEVE FLAG .250 Faston 110,connector sleeve,natural,18mm Terminals SLEEVE FOR 250 F Connector Accessories Insulation Sleeve Soft Soft Vinyl Chloride Clear Loose Piece Product Highlights:Insulation SleeveInsulation Diameter = 4.80 [.189] mm [in]Soft Vinyl Chloride MaterialHousing Color = NaturalLine = FASTON .250Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONNECTORSLEEVE,NATURAL TE Connectivity 18.5mm 压接端子盖
7-180984-0
te connectivity / amp
Connector Accessories Insulation Boot Polyamide 6.6 Natural Loose Piece FASTON Uninsulated Receptacles & Housings FLAG FASTON BOOT .250 SERIES Headers & Wire Housings FLAG FASTON BOOT .250 SERIES FASTON Uninsulated Receptacles & Housings Product Highlights:Insulation BootNumber of Circuits = 1Tab Fit = 6.35 mmPolyamide 6.6 MaterialHousing Color = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING

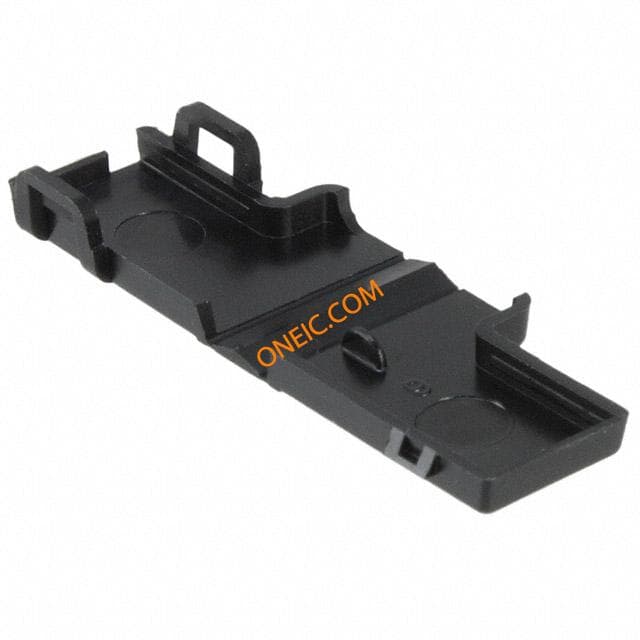

180984-5
