点击放大查看

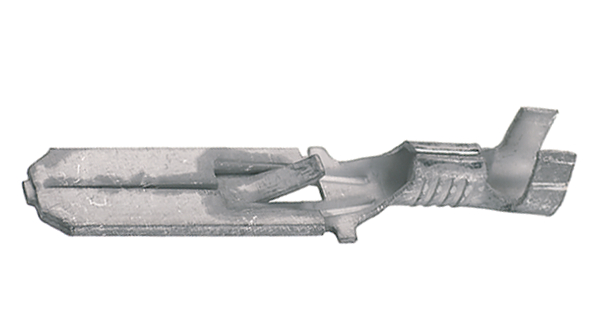

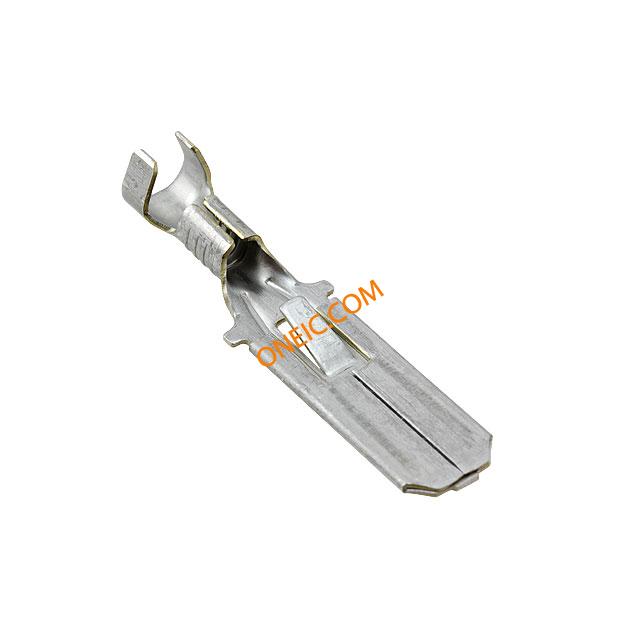

42241-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG M 29.18mm 6.48mm Tin Loose Piece Terminals .250 FASTIN FASTON TAB Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON .250 FASTIN FASTON TAB 0.25in male tab,0.8-2.1sq.mm Quick Disconnect Terminal 14-18AWG M 29.18mm 6.48mm Tin Loose Piece Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 3.05-4.06 [.120-.160] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TERMINAL, BLADE, 6.35MM, 18-14AWG, CRIMP 0.25inmaletab,0.8-2.1sq.mm Terminal: flat; 6.3mm; 0.8mm; male; 0.8÷2mm2; crimped; for cable Blade connector 6.3×0.8 mm, 42241-2, TE Connectivity TE Connectivity FASTIN-FASTON .250 系列 压接接头端子, 6.35 x 0.81mm, 镀锡触芯 FF 250 TAB 18-14 AWG .032 TPBR |
| 分类 |
商业参数
| 产品 | Tab Terminals | 产品类别 | Terminals |
| 标准包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Not Required | 深度 | 6.48 mm |
| 宽度 | 6.3mm | 表面处理 | Tin |
| 重量 | 0.001001 | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.38 [0.015] | 电缆类型 | Regular Wire |
| 绝缘类型 | Not Insulated | 插片长度 | 0.620" (15.75mm) |
| 导线线规 | 18-14 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.25 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | Yes |
| 接触镀层 | Tin | 安装样式 | for cable |
| 封装形式 | Multiple | 壳体镀层 | Tin |
| 箔压接区域 | F-Crimp | 插入力 | Normal |
| 材料表面处理 | :- | 触头材料 | Brass |
| 套圈材料 | with a latch | 绝缘颜色 | :- |
| 总长度 | FASTIN-FASTON .250 | 包装数量 | Loose Piece |
| 绝缘高度 | With | 绝缘直径 | 3.05-4.06 [.120-.160] |
| 绝缘材料 - 材质 | :- | 线规或范围 - AWG | :18AWG |
| 线规或范围 - mm² | 0.80-2.00² [18-14] | 触点材料 - 镀层 | tinned |
| 外径-未扩张 | :4.06mm | ||
产品信息
| SPG | 500 | 备注 | Without Locking Hole |
| 类型 | Quick Disconnect Ter | 连接器性别 | Male |
| 系列 | :FASTIN FASTON | CAD图纸 | 3D CAD Model |
| 产品子类型 | Tab | 单元数量 | 1 |
