点击放大查看

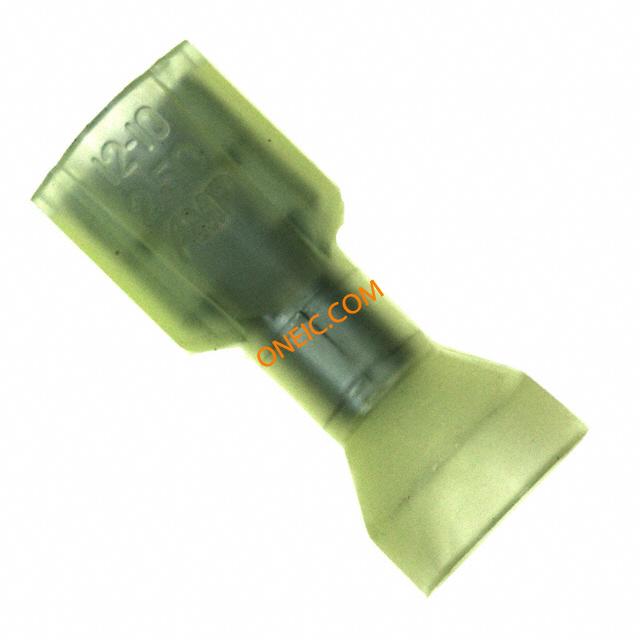

4-520448-2
| 制造商 | |
| 描述 | Quick Disconnect Terminal 10-12AWG F 23.75mm 10.38mm Tin Loose Piece Terminals .250 FASTON Ultra-Fast Receptacles & Tabs CONN RECEPT FAST 10-12 AWG .250 Receptacle terminal, Ultra-Fast 250 Quick Disconnect Terminal 10-12AWG RCP 23.75mm 10.38mm Tin Loose Piece Quick Disconnect Terminal 10-12AWG RCP 23.75mm 10.38mm Tin Loose Piece Product Highlights:ReceptacleProprietary Name = Ultra-FastReceptacle Style = StraightTab Fit = 6.35 x 0.81 mmBrass MaterialSearch Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG CRIMP TERMINAL, FEMALE, 6.3X0.8MM AMP;RECEPTACLE;FULLYINSULATED;12-10AWG Terminal: flat; 6.3mm; 0.8mm; female; 3÷6mm2; crimped; for cable 250 Series Faston Ultra-Fast 12-10 AWG Fully Insulated Straight Receptacle TE Connectivity Ultra-Fast Plus .250 系列 黄色 绝缘 压接插座 , 6.35 x 0.81mm, 镀锡触芯 ULTRAFAST 250 ASSY REC 12-10 TPBR LP |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | Yellow | 深度 | 10.38 mm |
| 宽度 | 6.3mm | 表面处理 | Tin |
| 重量 | 0.002 | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.8mm | 绝缘类型 | Insulated |
| 导线线规 | 12-10 | 方向 | straight |
| 端接方式 | Crimp | 基体材料 | Copper Alloy |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 0.25 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 行程角度 | Straight | 连接器类型 | :Crimp Terminal |
| 接触镀层 | Tin | 安装样式 | for cable |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 总宽度 | 0.409" | 触头材料 | Brass |
| 套圈材料 | insulated | 绝缘颜色 | :Yellow |
| 总长度 | 0.935" (23.75mm) | 包装数量 | Loose Piece |
| 主要材料 | QuickDisconnect | 绝缘高度 | Non-Insulation Support |
| 连接器颜色 | :Yellow | 绝缘直径 | 8.13 [.320] Max. |
| 绝缘材料 - 类型 | Nylon | 绝缘材料 - 材质 | Yes |
| 线规或范围 - AWG | :12AWG | 线规或范围 - mm² | 3.00-6.00² [12-10] |
| 触点材料 - 镀层 | tinned | 外径-未扩张 | :8.13mm |
产品信息
| SPG | 1 | 类型 | Quick Disconnect Ter |
| 连接器性别 | Female | 系列 | 250 |
| CAD图纸 | 3D CAD Model | 应用 | Standard |
| 制造商全称 | ULTRA-FAST | 产品子类型 | Receptacle |
| 单元数量 | 1 | 专有名称 | Ultra-Fast |
环境参数
| 工作温度 | :105°C | ||
