点击放大查看

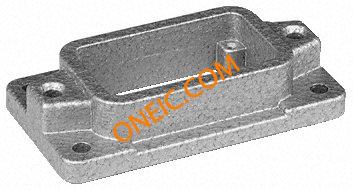

4-1102712-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Housing Die Cast Aluminum Black Finish Loose Piece HTS Connectors and Accessories CONN HOUSING SZ3 EMV-K HD Connector Housing EMV-K.6/16.AG.M6 Heavy Duty Power Connectors Housing Sz 3 BE EMV-K.6/16.AG.M6 EMV-K.6/16.AG.M6 EMV-K.6/16.AG.M6 Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HDCONNECTORHOUSINGEMV-K.6/1 |
| 分类 |
商业参数
| 标准包装规格 | 5 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 5 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 尺寸 | 3 | 表面处理 | Black |
| 材料（通用） | Die Cast Aluminum | 包装方式 | Bulk |
| 螺纹尺寸 | None | 外壳颜色 | Black |
| 连接器类型 | Base - Panel Mount | 外壳涂层 | Chromite TCP Passivation |
| 连接器样式 | Bottom | 锁定特性 | Screw Lock on Hood |
| 壳体材料 | Aluminum Alloy, Die Cast | 包装数量 | Loose Piece |
| 主要材料 | IndustrialRectangular | 尺寸/外形 | 3.780" L x 2.362" W x 0.866" H (96.00mm x 60.00mm x 22.00mm) |
| 总体尺寸 | 96.0 x 22.0 x 60.0 [3.78 x .87 x 2.36] | ||
产品信息
| 备注 | Protection against electro-magnetic interference, pressure-tight | 类型 | Housing |
| 样式 | Bottom Entry | 系列 | EMV |
| 制造商全称 | HTS | 产品子类型 | Housing |
| 锁定位置 | Screw Locks on Hood | 射频系列/标准 | 1102712 |
环境参数
| 液体防护 | Yes | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 80°C | ||
