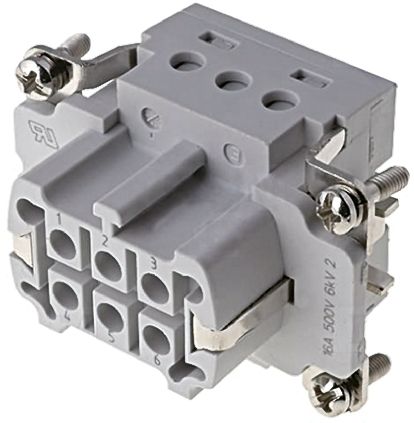

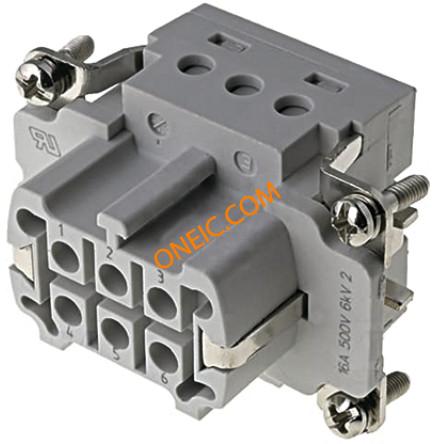

7-1103635-1

点击放大查看

7-1103635-1

制造商
TE Connectivity Ltd.
描述Conn Rectangular F 6Signal/1Ground POS ST Panel Mount Loose Piece CONN INSERT SKT SZ3 6POS CLAMP HTS 7 2 Male Straight Heavy Duty Power Connector, Panel Mount 16A,400V Heavy Duty Power Connectors HE.6.BU.SC Conn Rectangular F 6Signal/1Ground POS ST Panel Mount Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 Connector: HTS; female; HTS HE; PIN:6; 6+PE; size 3; 16A; 400V TE Connectivity HD 系列 2行 7针 6P+E极 插头 电源连接器 , 面板安装 HE.6.BU.SC
分类
连接器解决方案重载连接器重载连接器

商业参数

交货时间56 Days子类别Connector Rectangular
产品类别Heavy Duty Power Connectors标准包装数量Bulk

合规参数

RoHSLead free / RoHS Compliant标准CSA, DIN VDE 0110, DIN VDE 0627, SEV, UL
材料阻燃等级UL94 V-0

电气参数

额定电压400V极数6+PE
供电电压400最大额定电流16A

机械参数

尺寸3颜色Gray
重量0.07 kg材料（通用）thermoplastic
钻孔直径44mm包装方式Loose Piece
方向直安装类型Panel Mount
连接器类型Insert接触镀层Silver
安装样式for cable排数2
封装形式size 3插入件材料插座
触头材料Brass壳体材料Polycarbonate (PC), Glass Filled
包装数量5尺寸/外形see
端接样式Tension Clamp外径51mm
触点数6Signal/1Ground横截面形状0.5...2.5mm2
位数6+Ground外壳尺寸-插件否
衬套/护套类型不带小外径27mm
触点材料 - 镀层silver plated第一连接器安装特征6+PE
