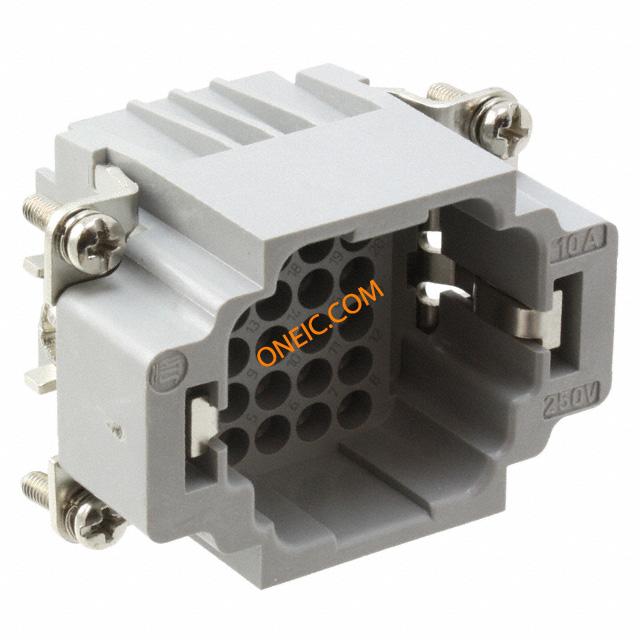

2-1103200-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing F 24Power/1Ground POS Crimp ST Loose Piece HTS Connectors and Accessories CONN INSERT MALE HN.2D.24 SRS Heavy Duty Power Connectors PIN INSERT 24+PE HN.2D.24 SIZE 3 Conn Housing F 24Power/1Ground POS Crimp ST Loose Piece Product Highlights:HN.2D.24 SeriesInsertProduct Size = 3Contact Type = Crimp TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, MALE, CRIMP, 24WAY HN.2.D.24.STI.C |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 5 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 10A |
| 最小供电电压 | 250V | ||
机械参数
| 尺寸 | 3 | 颜色 | Gray |
| 高度 | 33 mm | 重量 | 0.04 |
| 包装方式 | Bulk | 触头类型 | HTS HN.D |
| 安装类型 | Straight | 连接器类型 | Insert without Contacts |
| 接触镀层 | :Gold / Silver | 排数 | :6 |
| 插入力 | Male | 触头材料 | :Copper |
| 壳体材料 | Polycarbonate (PC) | 总长度 | 50 mm |
| 端接样式 | Crimp | 第一触头极性 | :Pin |
| 触点数 | 24Power/1Ground | 接触件端接 | :Crimp |
| 位数 | 24+Ground | 外壳尺寸-插件 | :3 |
产品信息
| 类型 | Housing | 连接器性别 | F |
| 系列 | HN.2D.24 | 产品子类型 | Inserts |
环境参数
| NEMA 机架尺寸 | :IP65, IP66, IP67, IP68 | 工作温度 | -40°C ~ 125°C |
相关型号
