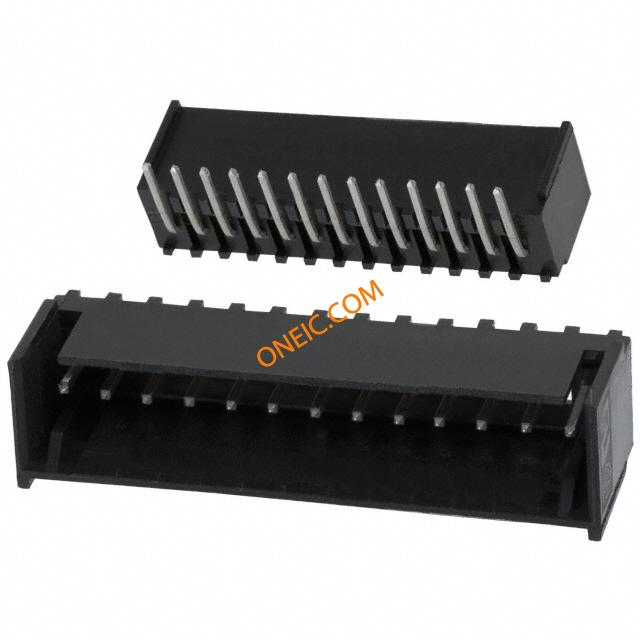

3-644803-3

点击放大查看

3-644803-3

制造商
TE Connectivity Ltd.
描述
Conn Shrouded Header HDR 13 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG .100 13POS TIN Headers & Wire Housings 13P MTA100 SHRD HDR ASSY RA FL Conn Shrouded Header HDR 13 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA100 SHRD HDR ASSY RA FL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量500

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°CUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V开关功能Friction Lock
供电电压250接触电阻6 mohm
额定交流电压250连接器阻抗焊接
最大额定电流5 A最小供电电压250VAC

机械参数

颜色Black深度10.92 mm
间距2.54 mm高度8.71 mm
长度35.15 mm [ 1.384 in ]包装方式Bulk
遮蔽类型Yes壳体颜色黑色
端接方式Solder触头类型Male Pin
第二连接器With触点形状Square
外壳颜色White安装类型Right Angle
连接器类型Header, Shrouded接触镀层Tin
触点时序Without紧固类型Friction Lock
安装样式Through Hole排数1
壳体镀层Tin外壳材料（壳体）摩擦锁
连接器用途Header插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
总长度35.15 mm安装特性Without
包装数量500面板安装类型Without
尺寸/外形0.64 [.025]端接样式Through Hole
第一触头极性Pin (Male)配接方向Without
触点数13端接表面处理不带
位数13后壳中断功能Without
兼容外壳尺寸（如TM-700等）MTA .100 连接器组件触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局同轴接触长度 - 配合0.200" (5.08mm)
触点材料 - 柱Copper Alloy端子柱长度3.30 [0.130]
接触镀层厚度3.81 – 6.35 µm [ 150 – 350 µin ]恢复后小径No
静电放电屏蔽不带直角致动器长度Rear
护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Shrouded Header连接器性别HDR
系列MTA-100可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Printed Circuit Board应用细节Wire-to-Board
加载位置数All跳过的位置数None

环境参数

工作温度-55C to 105C封装热阻1.6 mm [ .063 in ]

文档与媒体

在线文档
3-644803-3
