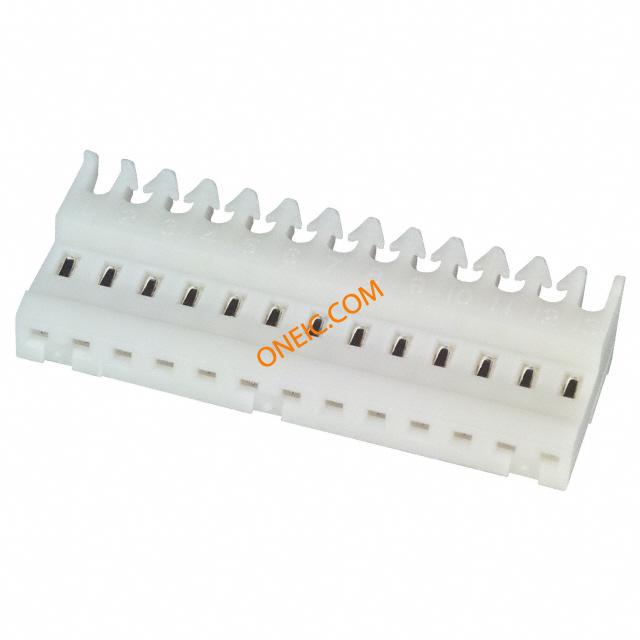

4-640621-3

点击放大查看

4-640621-3

制造商
TE Connectivity Ltd.
描述
Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 24AWG MTA100 Headers & Wire Housings 13P ASSY F/T NATL Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA100 CONN ASSY F/T NATL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC开关功能Ramp Lock
供电电压250额定交流电压250
连接器阻抗IDC最大额定电流5 A

机械参数

颜色White间距2.54 mm
高度7.75 mm [ .305 in ]长度33.02 mm [ 1.3 in ]
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable壳体颜色白色
出线方向90°电缆类型分离式导线, 绞线
导线线规24 AWG端接方式IDT
触头类型Female Socket第二连接器With
外壳颜色White安装类型Free Hanging (In-Line)
连接器类型Feed Thru接触镀层Tin Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式Wire排数1
壳体镀层Nickel外壳材料（壳体）标准
连接器用途Receptacle插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
安装特性Without包装数量Loose Piece
面板安装类型Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向Without触点数13
端接表面处理带有接触件端接Locking Lance
绝缘直径1.52 mm [ .06 in ]位数13
兼容外壳尺寸（如TM-700等）MTA .100 头和 MTA .100 IDC 柱形连接器安装孔直径不带
接触件表面处理 - 配合锡典型触点布局2.54 [0.100]
表面贴装焊盘尺寸Without接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.2² [24]
静电放电屏蔽带有护套（绝缘）厚度.762 µm, 30 µin

产品信息

类型IDC Connector连接器性别F
系列MTA-100产品特性Feed Through
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Wire
跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]
