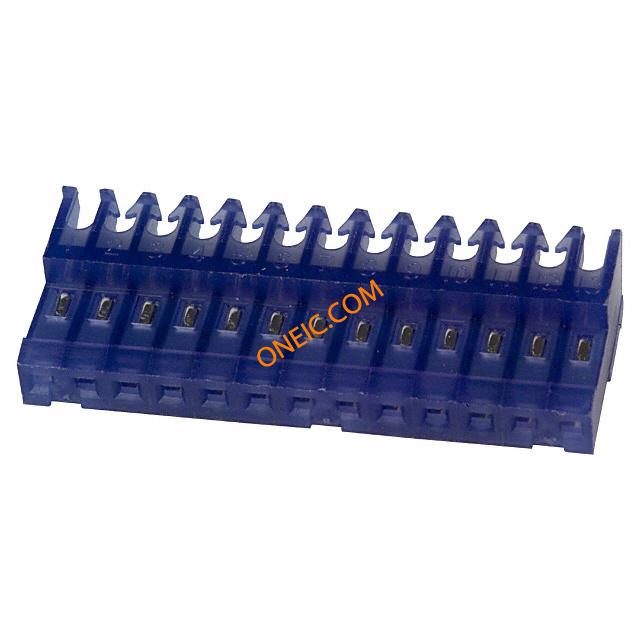

4-640622-3

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 26AWG MTA100 Headers & Wire Housings 13P ASSY F/T BLU Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Housing13 PositionsPreloadedHousing Gender = ReceptacleContact Gender = ReceptacleSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA100 CONN ASSY F/T BLU
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	Bulk
工厂包装数量	10

合规参数

RoHS	Lead free / RoHS Compliant	UL等级	获得认可
无铅定义	Not relevant for lead free process	UL档案号	E28476
CSA档案号	LR7189	标准编号	CSA, UL
CSA认证	Certified	RoHS/ELV合规状态	RoHS compliant, ELV compliant
材料阻燃等级	UL 94V-2

电气参数

额定电压	250 VAC	供电电压	250
额定交流电压	250	连接器阻抗	IDC
最大额定电流	5

机械参数

颜色	Blue	间距	2.54 mm
高度	7.75 mm [ .305 in ]	长度	33.02 mm [ 1.3 in ]
包装方式	Bulk	遮蔽类型	No
导线类型	Discrete or Ribbon Cable	壳体颜色	白色
出线方向	90Â°	电缆类型	分离式导线, 绞线
导线线规	26 AWG	端接方式	IDT
触头类型	Female Socket	第二连接器	With
外壳颜色	Blue	安装类型	Free Hanging (In-Line)
连接器类型	Feed Thru	接触镀层	Tin Over Nickel
触点时序	Without	紧固类型	Locking Ramp
安装样式	Wire	排数	1
壳体镀层	Nickel	外壳材料（壳体）	标准
连接器用途	Receptacle	插入件材料	铜合金
触头材料	Copper Alloy	壳体材料	Nylon
安装特性	Without	包装数量	Loose Piece
面板安装类型	Without	电缆端接方式	IDC
端接样式	IDC	第一触头极性	Socket (Female)
配接方向	Without	触点数	13
端接表面处理	带有	接触件端接	Locking Lance
绝缘直径	1.52 mm [ .06 in ]	位数	13
兼容外壳尺寸（如TM-700等）	MTA .100 头和 MTA .100 IDC 柱形连接器	安装孔直径	不带
接触件表面处理 - 配合	锡	典型触点布局	2.54 [0.100]
表面贴装焊盘尺寸	Without	接触镀层厚度	80µin (2.03µm)
恢复后小径	No	线规或范围 - mm²	0.12-0.15Â² [26]
静电放电屏蔽	带有	护套（绝缘）厚度	.762 µm, 30 µin

产品信息

备注	肋之间的条纹可能会减少	类型	IDC Connector
连接器性别	F	系列	MTA-100
产品特性	Feed Through	可密封	否
制造商全称	AMP	产品子类型	MTA-100 Connectors
连接类型	Wire	跳过的位置数	None

环境参数

工作温度

-55 – 105 °C [ -67 – 221 °F ]
