3-641314-2

点击放大查看

3-641314-2

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 28AWG .100 GREEN
分类
连接器解决方案矩形连接器高可靠性矩形连接器

商业参数

标准包装数量Tape & Reel

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-2

电气参数

额定交流电压250

机械参数

颜色Green间距2.54 mm
包装方式Tape & Reel (TR)遮蔽类型No
导线类型Discrete or Ribbon Cable出线方向90°
导线线规28 AWG端接方式IDT
触头类型Female Socket第二连接器With
外壳颜色Green安装类型Free Hanging (In-Line)
连接器类型Feed Thru接触镀层Tin Over Nickel
紧固类型Locking Ramp排数1
连接器用途Receptacle触头材料Phosphor Bronze
壳体材料Nylon安装特性Without
包装数量Tape Mounted on Reel面板安装类型Without
电缆端接方式IDC配接方向Without
触点数2位数2
典型触点布局2.54 [0.100]接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.08-0.09² [28]

产品信息

类型IDC Connector连接器性别F
产品特性Feed Through制造商全称AMP
产品子类型MTA-100 Connectors连接类型Wire
跳过的位置数None

文档与媒体

641314

相关型号

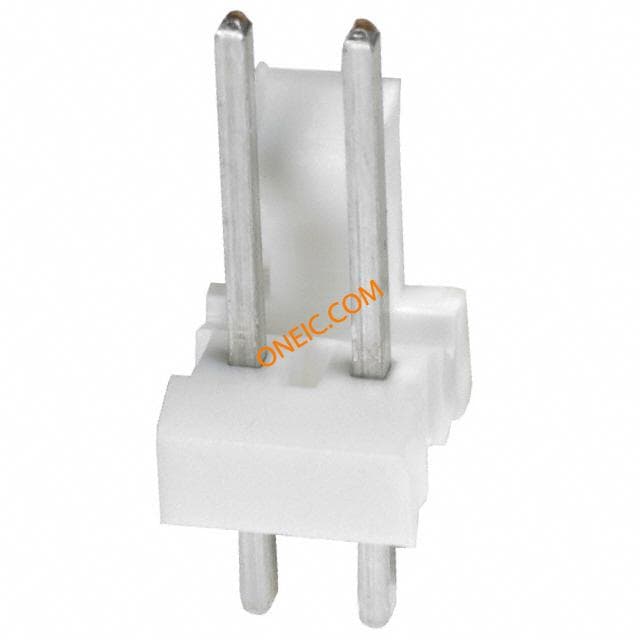

640454-2

640454-2

te connectivity / amp

Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings POLARIZED HEADER 2P Straight Post tin Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 2WAY Header,Polarized;MTA-100;2;250VAC;Polyester;Tin;CopperAlloy;0.100in. Connector: wire-board; Series: MTA-100; male; socket; tinned; PIN:2 Pin header 2P, 640454-2, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 02P MTA100 HDR ASSY SQ STR POL

¥0.2376
详情
640456-2

640456-2

te connectivity / amp

Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 2P Straight Post tin Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 2WAY Header,FrictionLock;MTA-100;2;250VAC;Polyester;Tin;CopperAlloy;Tin Connector: wire-board; MTA-100; socket; male; PIN:2; tinned; 2.54mm Pin header 2P, 640456-2, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 02P MTA100 HDR ASSY F/L SQ STR

¥0.2520
详情

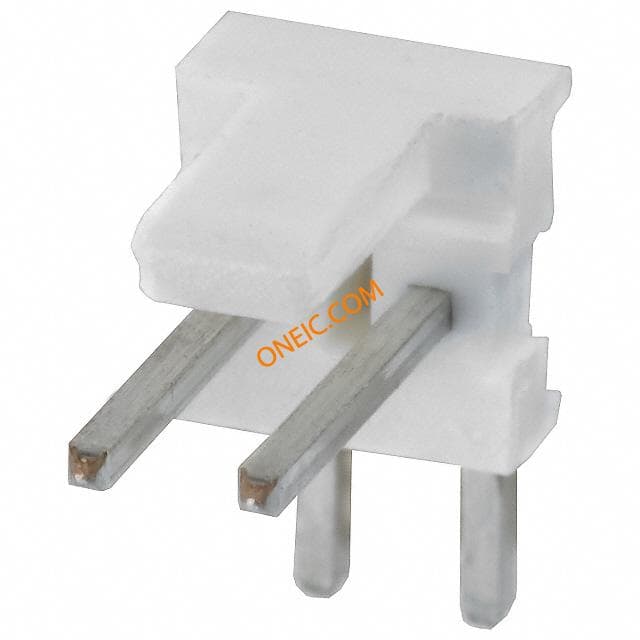

640457-2

640457-2

te connectivity / amp

Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 2P Right Angle Post tin Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, HEADER, THT, RA, 2.54MM, 2WAY Header,FrictionLock;MTA-100;2;250VAC;Polyester;Tin;CopperAlloy;Tin Connector: wire-board; MTA-100; socket; male; PIN:2; tinned; 2.54mm Pin header angled 2P, 640457-2, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 02P MTA100 HDR ASSY SQ R/A F/L

¥0.2736
详情
2-644486-2

2-644486-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .100 TIN Headers & Wire Housings SHROUDED HEADER 2P Straight Post tin Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100SHROUDEDHDR,02PMTA100SHRDEDHDRASSYSN TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 02P MTA100 SHRDED HDR ASSY SN

¥1.7856
详情

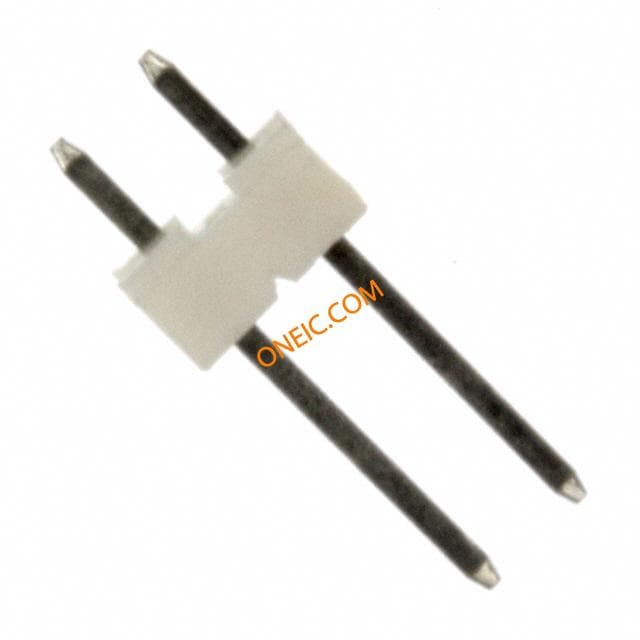

3-644456-2

3-644456-2

te connectivity / amp

Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .100 TIN Header 2 way pin 2.54mm MTA-100 Headers & Wire Housings NARROW FLT HDR 2P Straight Post Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 2WAY, 0.1IN HEADERASSEMBLY,NARROW,MTA-100,2POSITION,STRAIGHT TE Connectivity MTA-100 系列 2路 2.54mm节距 (1排) 直 引脚管座 , 焊接端接, 5A, 通孔 02P MTA100 HDR ASSY (NARROW)

¥0.4082
详情
640452-2

640452-2

te connectivity / amp

Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FLAT HEADER 2P Straight Post tin Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 2WAY Header,FrictionLock;MTA-100;2;250VAC;Polyester;Tin;CopperAlloy;Tin TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 02P MTA100 HDR ASSY SQ STR

¥0.7711
详情
3-641215-2

3-641215-2

te connectivity / amp

Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .100 30AU TE Connectivity MTA-100 Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 2P Straight Post gold Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 2POS, 2.54MM HEADERASSEMBLY,MTA-100,2POSITION,GOLD(30),STRAIGHT,FRICTIONLOCK TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 02P MTA100 HDR ASSY FL/ST 30AU

¥1.3795
详情
640455-2

640455-2

te connectivity / amp

Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .100 TIN Header right angle 2 way Pin MTA-100 Headers & Wire Housings POLARIZED HEADER 2P Right Angle Post tin Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 2POS, 2.54MM MTA-100HEADER-TIN,02PMTA100HDRASSYSQR/APOL TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直角 PCB 针座, 焊接端接 , 通孔 02P MTA100 HDR ASSY SQ R/A POL

¥0.1692
详情
644877-2

644877-2

te connectivity / amp

Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEAD 2POS R/A TIN Headers & Wire Housings 02P MTA100 HDR ASSY POL RET BND 02P MTA100 HDR ASY POL,RET BND 02P MTA100 HDR ASY POL,RET BND Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥1.4436
详情
641122-2

641122-2

te connectivity / amp

Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 02P MTA100 HDR ASSY PL SQ STR MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS STR .100 15GOLD

详情
641211-2

641211-2

te connectivity / amp

Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS STR .100 30GOLD 02P MTA100 HDR ASY PL STR 30A 02P MTA100 HDR ASY PL STR 30A Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥1.2240
详情
647106-2

647106-2

te connectivity / amp

Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole CONN HEADER 2POS VERT .100 TIN MTA, CST-100 II, MT-6 and SL Connectors and Headers MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA-100 HDR ASSY,SM,SN

¥4.8780
详情
暂无图片

647051-2

te connectivity / amp

Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole Tube MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS R/A .100 TIN Headers & Wire Housings 02P MTA100 HRD ASSY F/L HI-TEMP Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥6.5534
详情
641216-2

641216-2

te connectivity / amp

Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 2POS 30AU Headers & Wire Housings FRICTION LCK HDR 2P R.A. Post gold Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA100 HDR ASSY FL/RA 30AU

¥2.1600
详情
644861-2

644861-2

TE Connectivity / AMP

Headers & Wire Housings VERT HDR 2P MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 2POS TIN Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥0.7200
详情
644694-2

644694-2

TE Connectivity / AMP

Headers & Wire Housings NARROW FLT HDR 2P R.A. Post w/ret. Leg CONN HEADER RTANG 2POS .100 TIN

详情
644457-2

644457-2

TE Connectivity / AMP

Headers & Wire Housings NARROW FLT HDR 2P Right Angle Post CONN HEADER RTANG 2POS .100 TIN

详情

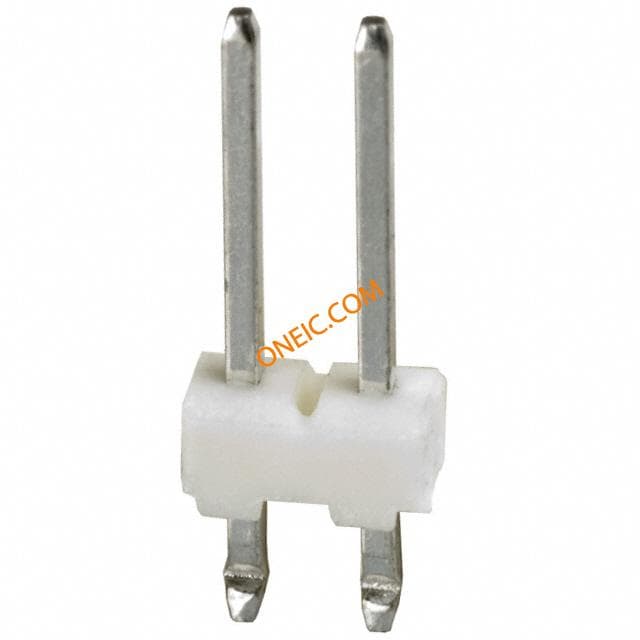

3-644695-2
