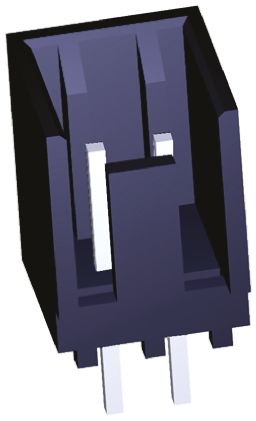

点击放大查看
2-644861-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .100 TIN Headers & Wire Housings HDR 02P VRT SHROUD Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 2POS, 2.54MM TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 02P MTA100 SHRD HDR,W/O PEG SN |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 开关功能 | Friction Lock |
| 接触电阻 | 6 mohm | 额定交流电压 | 250 |
| 最大额定电流 | 5 A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 7.95 mm |
| 间距 | 2.54 mm | 高度 | 10.42 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 端接方式 | Solder |
| 触头类型 | Male Pin | 第二连接器 | Without |
| 触点形状 | Square | 外壳颜色 | White |
| 安装类型 | Vertical | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Friction Lock |
| 安装样式 | Through Hole | 排数 | 1 |
| 连接器用途 | Header | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 总长度 | 7.21 mm |
| 安装特性 | Without | 包装数量 | 500 |
| 面板安装类型 | Without | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 配接方向 | Without | 触点数 | 2 |
| 接触件端接 | :Through Hole Vertical | 位数 | 2 |
| 后壳中断功能 | Without | 典型触点布局 | 2.54 [0.100] |
| 接触长度 - 配合 | 0.200" (5.08mm) | 触点材料 - 柱 | Copper Alloy |
| 端子柱长度 | 3.56 [0.140] | 恢复后小径 | No |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | MTA-100 | 制造商全称 | AMP |
| 产品子类型 | MTA-100 Connectors | 连接类型 | Printed Circuit Board |
| 应用细节 | Wire-to-Board | 加载位置数 | All |
| 跳过的位置数 | None | ||
环境参数
| 工作温度 | -55C to 105C | ||
