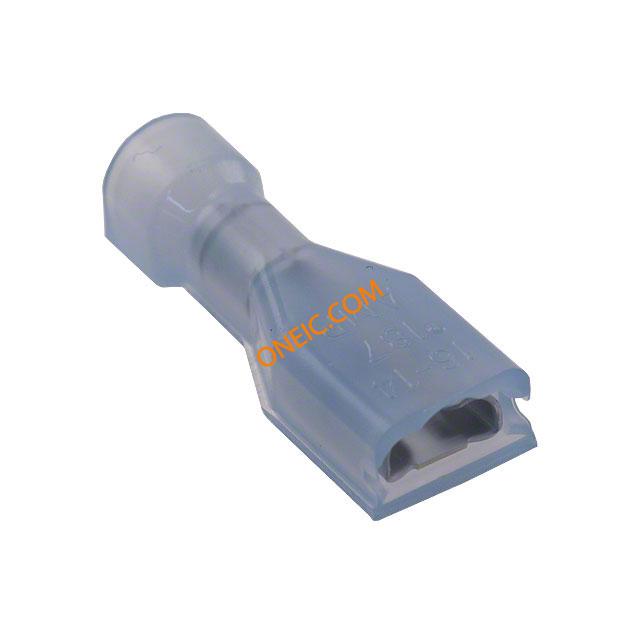

3-520125-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-16AWG RCP 21.71mm 8.53mm Tin Loose Piece Terminals ULTRA-FAST RECPT 16-14 AWG Ultra-Fast Receptacles & Tabs CONN FAST RECEPT 14-16 AWG .187 Receptacle terminal,Ultra-Fast 187, blue Quick Disconnect Terminal 14-16AWG RCP 21.71mm 8.53mm Tin Loose Piece Product Highlights:ReceptacleProprietary Name = Ultra-FastReceptacle Style = StraightTab Fit = 4.75 x 0.81 mmBrass MaterialSearch Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG CRIMP TERMINAL, FEMALE, 4.8X0.8MM AMP;RECEPTACLE;FULLYINSULATED;16-14AWG Terminal: flat; 4.8mm; 0.8mm; female; 1.25÷2mm2; crimped; for cable Ultra Fast 16-14 AWG Straight Fully Insulated Receptacle Assembly TE Connectivity Ultra-Fast .187 系列 蓝色 绝缘 压接插座 , 4.75 x 0.81mm, 镀锡触芯 ULTRAFAST 187 ASSY REC 16-14 TPBR LP |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | Blue | 深度 | 8.53 mm |
| 宽度 | 4.8mm | 表面处理 | Tin |
| 长度 | 0.855in | 重量 | 0.074 |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 4.75 x 0.81 [.187 x .032] | 厚度 | 0.8mm |
| 绝缘类型 | Insulated | 导线线规 | 16-14 |
| 方向 | straight | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.187 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 行程角度 | Straight |
| 连接器类型 | Quick Disconnect Terminal | 接触镀层 | Tin |
| 安装样式 | for cable | 壳体镀层 | Tin |
| 连接器样式 | Straight | 总宽度 | 0.336" |
| 触头材料 | Brass | 套圈材料 | insulated |
| 绝缘颜色 | :Blue | 总长度 | 0.855" (21.72mm) |
| 包装数量 | Loose Piece | 主要材料 | QuickDisconnect |
| 绝缘高度 | Non-Insulation Support | 连接器颜色 | :Blue |
| 绝缘直径 | 4.06 [.160] Max. | 绝缘材料 - 类型 | Nylon |
| 绝缘材料 - 材质 | Yes | 线规或范围 - AWG | :16AWG |
| 线规或范围 - mm² | 1.25-2.00² [16-14] | 触点材料 - 镀层 | tinned |
| 外径-未扩张 | :4.06mm | ||
产品信息
| SPG | 1 | 类型 | Quick Disconnect Ter |
| 连接器性别 | Female | 系列 | 187 |
| 已删除 | Compliant | CAD图纸 | 3D CAD Model |
| 应用 | Standard | 制造商全称 | ULTRA-FAST |
| 产品子类型 | Receptacle | 单元数量 | 1 |
| 专有名称 | Ultra-Fast | ||
环境参数
| 工作温度 | :105°C | ||
相关型号
