280377-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 2POS R/A GOLD T/H TE Connectivity AMPMODU Series 2.54mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings 2P HDR SHROUDED 15AU Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 2Mating Post Length = 6.60 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, SHROUDED, RIGHT ANGLE, 2WAY 2WAYSINGLEROWR/A Socket; wire-board; male; PIN:2; 2.54mm; THT; AMPMODU MOD II PCB header 1 x 2P, 280377-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 2路 (1排) 直角 PCB 针座, 焊接端接 , 通孔 2P MODU II SHRD HDR,RT ANG, 0.38AU |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU Mod II Series | 开关功能 | Detent Windows |
机械参数
| 颜色 | Black | 深度 | 14.9 mm |
| 间距 | 2.54 mm | 高度 | 5 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 方向 | angled 90° | 排间距 | 2.54 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :2.54mm | 柱间距 | 2.54 [.100] |
| 第一连接器 | No | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 连接器类型 | Shrouded | 接触镀层 | Gold |
| 安装样式 | Through Hole | 排数 | 1 |
| 封装形式 | 3-Sided | 锁定特性 | Detent Windows |
| 外形（宽 x 高） | Standard | 触头材料 | Brass |
| 壳体材料 | Thermoplastic Glass Reinforced | 总长度 | 7.7 mm |
| 安装特性 | Without | 包装数量 | 1,000 |
| 面板安装类型 | Without | 连接器 - 电缆 | socket |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Black | 触点数 | 2 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 2 |
| 柱体长度（配合） | 6.6 mm | 接触长度 - 配合 | 6.60 [0.260] |
| 表面贴装焊盘尺寸 | No | 端子柱长度 | 3.50 [0.138] |
| 接触镀层厚度 | 15µin (0.38µm) | 触点材料 - 镀层 | gold plated |
| 第一连接器安装特征 | 1x2 | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | AMPMODU | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 产品子类型 | Header |
| 适配器系列 | AMPMODU MOD II | 单元数量 | 1 |
| 选择性装载 | No | 加载位置数 | All |
环境参数
| 温度 | No | 工作温度 | -55 â +105 |
文档与媒体
相关型号
215297-2
te connectivity / amp

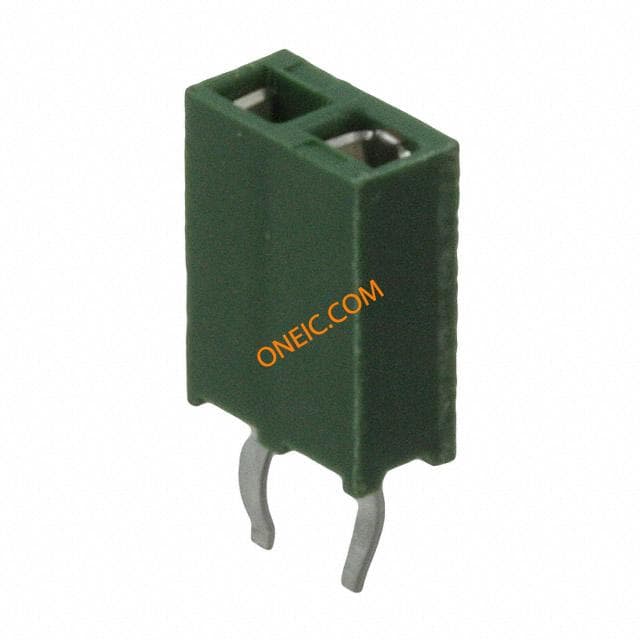

Conn Socket Strip SKT 2 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT HV-100 SRS VERT 2POS TE Connectivity 2.54mm 2 Way 1 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 2P RECPT VERT HV-100 Conn Socket Strip SKT 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:ReceptacleHV-100Number of Positions = 2Number of Rows = SingleStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, SOCKET, VERTICAL, 1ROW, 2WAY 1x2wayverticalreceptacleMODU Socket; pin strips; HV-100; female; PIN:2; straight; 2.54mm; THT Female header 1 x 2P, 215297-2, TE Connectivity TE Connectivity AMPMODU HV100 系列 2路 直 2.54mm节距 通孔 印刷电路板插座, 插座板 2P HV100 REC CON. TE, 7.0MM
