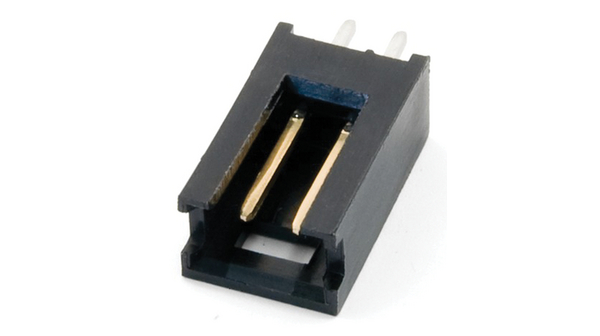

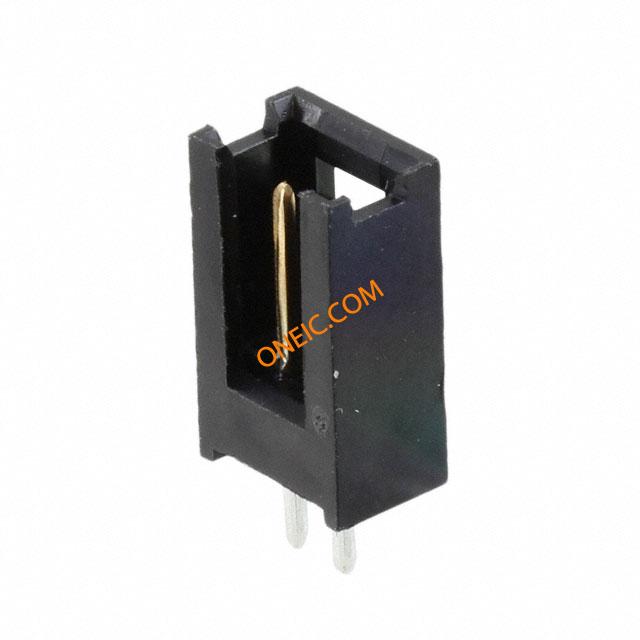

280370-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 2POS SHROUD GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination Headers & Wire Housings VERT SHROUD SNGL 2P Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 2Mating Post Length = 6.60 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 2WAYSINGLEROW Socket; wire-board; male; PIN:2; 2.54mm; THT; AMPMODU MOD II PCB header 1 x 2P, 280370-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接 , 通孔 2P AMPMODU II SHRD HDR, ST, 0.38AU |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 标准编号 | CSA LR7189, UL E28476 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 100 | 极数 | 1 x 2 |
| 开关功能 | Detent Windows | 连接器阻抗 | 制动器窗口 |
| 最大额定电流 | 3 A | 保护额定电压（VPR） | 750 V |
机械参数
| 颜色 | Black | 深度 | 5 mm |
| 间距 | 2.54 mm | 高度 | 12.6 mm |
| 重量 | 0.44 g | 底座类型 | 不带 |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 引脚样式 | 圆形, 圆形 |
| 轴径尺寸 | .025 | 稳定器 | 不带 |
| 方向 | straight | 排间距 | 2.54 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 2.54 [.100] | 第一连接器 | No |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Shrouded |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 排数 | 1 | 封装形式 | 3-Sided |
| 外壳材料（壳体） | 3- 面 | 连接器样式 | Single row |
| 插入件材料 | 黄铜 | 锁定特性 | Detent Windows |
| 外形（宽 x 高） | Standard | 触头材料 | Brass |
| 壳体材料 | Thermoplastic Glass Reinforced | 总长度 | 7.7 mm |
| 安装特性 | Without | 包装数量 | 1,000 |
| 面板安装类型 | Without | 端接排数 | 焊接 |
| 连接器 - 电缆 | socket | 端接样式 | Through Hole |
| 第一连接器类型 | 带罩 | 第一触头极性 | Pin (Male) |
| 触点数 | 2 | 端接表面处理 | 带有 |
| 位数 | 2 | 第一连接器极性 | Male |
| 连接器 - AC输入 | 0.4 µm Au | 柱体长度（配合） | 6.6 mm |
| 安装孔直径 | 带有 | 接触长度 - 配合 | 6.60 [0.260] |
| 表面贴装焊盘尺寸 | No | 端子柱长度 | 3.50 [0.138] |
| 接触镀层厚度 | 15µin (0.38µm) | 触点材料 - 镀层 | gold plated |
| 静电放电屏蔽 | 不带 | 第一连接器安装特征 | 1x2 |
产品信息
| 制造商 | 1.65 | SPG | 1500 |
| 类型 | Shrouded Header | 设计类型 | Pin strip, single row straight |
| 连接器性别 | HDR | 系列 | AMPMODU |
| 覆盖范围 | 覆盖 | 钥匙类型 | 否 |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | Header | 适配器系列 | AMPMODU MOD II |
| 放大器类型 | 7.7 | 单元数量 | 1 |
| 选择性装载 | No | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 温度 | No |
| 防护等级 | 带罩 | 工作温度 | -55 â +105 |
| 结工作温度 | 否 | ||
相关型号

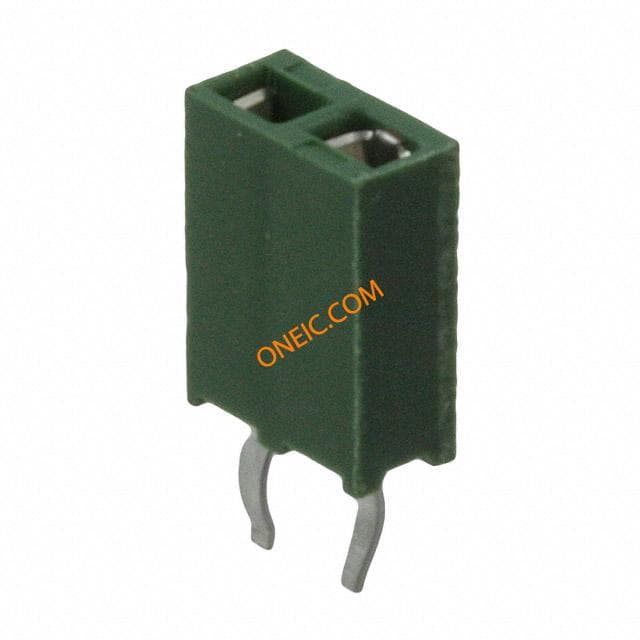

215297-2
