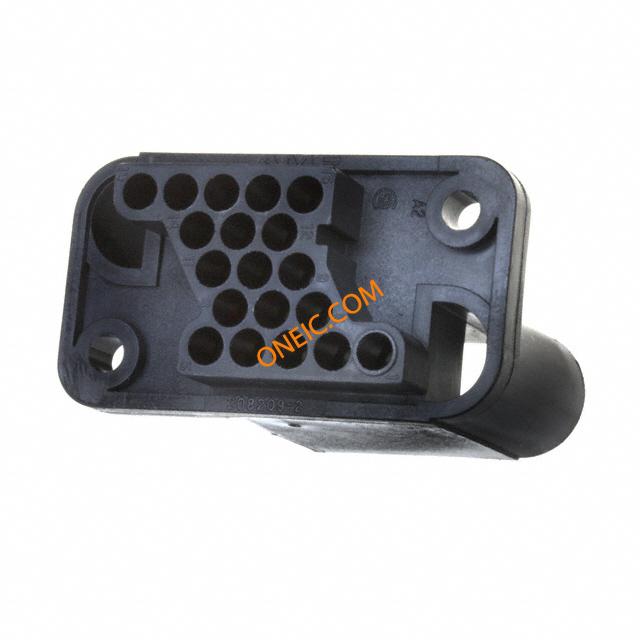

208209-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 19 POS 5.08mm Crimp ST Cable Mount Metrimate Connectors CONN RECEPT 19 POS METRIMATE TE Connectivity 5.08mm 19 Way 5 Row Straight Cable Mount Female Multiway Connector Pin & Socket Connectors 19 POS METRI PIN HSG Conn Housing RCP 19 POS 5.08mm Crimp ST Cable Mount Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = StandardNumber of Positions = 19ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, PLUG & SOCKET HOUSING, RCPT, POLYESTER METRIMATEDRAWERCONN,METRIMATEPINHSG19POSN TE Connectivity 19路 (5行) 5.08mm节距 直 电缆安装 母 METRIMATE PIN HSG 19 POSN |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 165 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电压 | 600.0 | 额定电压 | 600 V ac |
| 最大额定电流 | 14A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Black | 深度 | 40.77 mm |
| 间距 | 5.08 mm | 高度 | 30.78mm |
| 重量 | 0.032 | 包装方式 | Bulk |
| 触头类型 | Pin | 第二连接器 | Without |
| 基体材料 | :Polyester | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Housing |
| 安装样式 | Panel | 排数 | 5 |
| 连接器样式 | Drawer | 连接器用途 | Drawer |
| 线缆终端 | :Panel Mount | 壳体材料 | Polyester |
| 总长度 | 54.94 mm | 安装特性 | Without |
| 主要材料 | InterconnectSystem | 传感器连接器 | Without |
| 触点数 | 19 | 位数 | 19 |
| 中心触点表面处理 | 5.08 | ||
产品信息
| 备注 | Positions 1 & 19 should not be used with ground pin. | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Metrimate |
| 产品特性 | Mating Guide | 编码、键控 | No |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 抽屉总数 | Standard | 其他规格 | No |
| 适用产品/相关产品 | :Metrimate Drawer Connectors | ||
环境参数
| 工作温度 | -55C to 130C | ||
