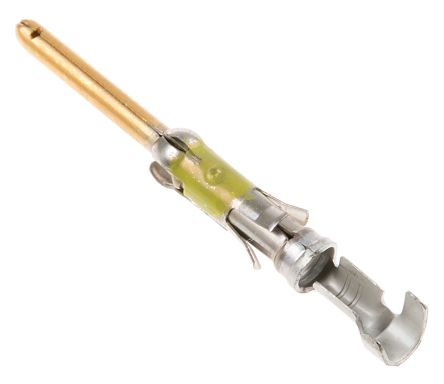

点击放大查看
66400-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN 20-24AWG CRIMP GOLD Contact male,24-20 awg,crimp AuNi Power to the Board PIN CONTACT GLD PL Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP TERMINAL, MALE Contact;Pin;16;Brass;Signal;Gold(15)overNickel(50);24-20AWG;Crimp MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Assembly TE Connectivity Type III+ 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 24 → 20 AWG 线规格 III+ PIN,24-20,15AU/FL,LP |
| 分类 |
商业参数
| 商标名 | Multimate | 零件号别名 | 0-0066400-3 |
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant |
| 海关税号 | 85369010 | ||
电气参数
| 输出电流 | 13A | 最大额定电流 | 13 A |
机械参数
| 重量 | 0.02 | 镀层 | Gold |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 导线类型 | Discrete | 导线线规 | 20-24 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 引脚直径 | 0.062in. | 插针或插孔 | Pin |
| 连接器类型 | Connector Power | 接触镀层 | Gold Over Nickel |
| 触头材料 | Brass | 总长度 | 27.56mm |
| 框架材料 | StainlessSteel | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 接触件尾部长度 | 16 |
| 接触件端接 | Crimp | 绝缘直径 | 0.080to0.100in. |
| 镀层厚度（通用） | 15µin (0.38µm) | 线规或范围 - AWG | 24-20 |
产品信息
| 类型 | Stamped | 等级 | Commercial |
| 连接器性别 | PIN | 系列 | Multimate Type III |
| 制造商全称 | AMP | 产品子类型 | Contacts |
| 适用产品/相关产品 | :G Series, M Series, CPC Connectors | ||
