点击放大查看

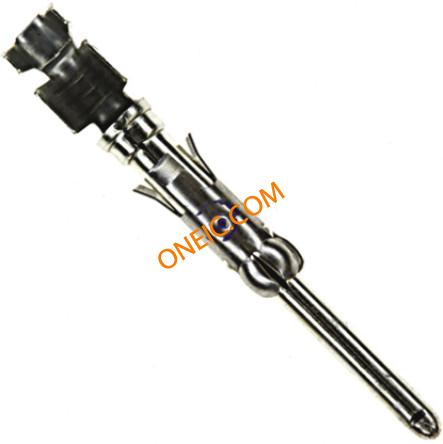

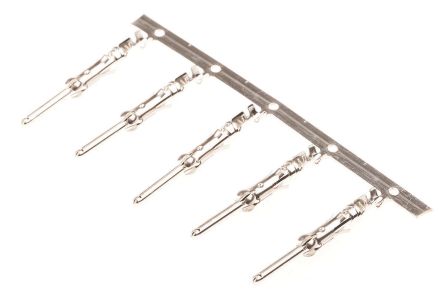

2-66102-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Pin & Socket Connectors PIN 24-20 BR/SN SIG Multimate CONN PIN 20-24AWG TIN CRIMP Contact male,24-20awg,crimp,Tin Pin & Socket Connectors PIN 24-20 BR/SN SIG Reel of 4000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinBright Tin Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN CONTACT, PIN, 24-20AWG, CRIMP CONTACT, CRIMP, PIN, 24-20AWG, REEL TYPEIIICONTACTSSTR,III+PIN,24-20,TIN,STRIP MULTIMATE Type III 24-20 AWG Insulation Support Crimp Signal Pin Contact TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀锡镀镍触点 III+ PIN,24-20,TIN ,STRIP |
| 分类 |
商业参数
| 商标名 | Multimate | 其他名称 | A31989CT |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | 13 A | ||
机械参数
| 深度 | 2.92 mm | 间距 | 2.54 mm |
| 重量 | 0.429 | 镀层 | Tin |
| 材料（通用） | Brass | 包装方式 | Reel |
| 导线线规 | 20-24 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | Connector Power |
| 接触镀层 | Tin Over Nickel | 安装样式 | Through Hole |
| 触头材料 | Brass | 壳体材料 | Stainless Steel |
| 总长度 | 27.48mm | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 接触件端接 | Crimp | 镀层厚度（通用） | 50µin (1.27µm) |
| 线规或范围 - AWG | :24AWG | ||
产品信息
| 类型 | Stamped | 连接器性别 | PIN |
| 系列 | M | 产品子类型 | Receptacle Housings |
| 端口数 | 1 Port | 适用产品/相关产品 | :- |
