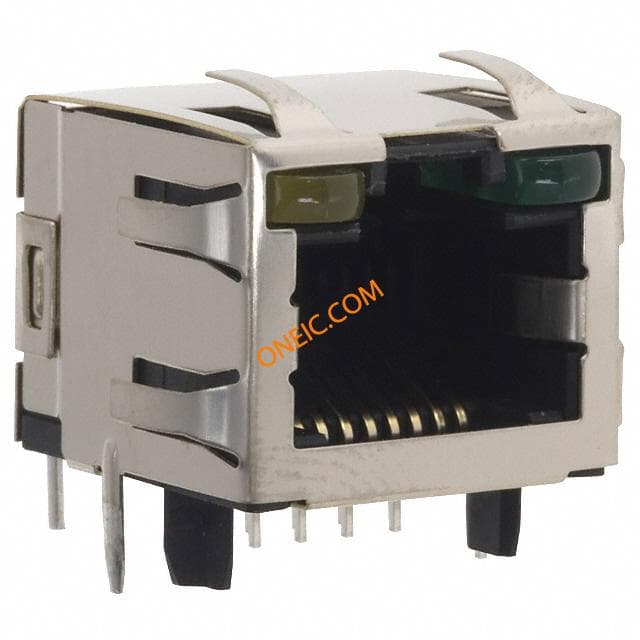

2-406549-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 F 8 POS 2.03mm Solder RA Thru-Hole 12 Terminal 1 Port Tray Cat 5 PCB Mounted Jacks - Single Port, Multi-port and Stacked CONN MOD JACK R/A 8P8C SHIELDED Modular Connectors / Ethernet Connectors 8 POS RJ45 LED G/Y RIGHT ANGLE Conn RJ-45 F 8 POS 2.03mm Solder RA Thru-Hole 12 Terminal 1 Port Tray Cat 5 Product Highlights:JackSingle Port Configuration1 x 1 Jack ConfigurationJack Type = RJ45Number of Positions = 8Search Keywords:FCC Part 68, REA PE-76, UL 1863, Communication Circuit Accessories, near end crosstalk (NEXT), EIA/TIA 568A, modular jacks, phone jacks, input/output, box to box, pcb mounted jacks, VAO MODULAR, JACK, THT, R/A, LED, RJ45, 8P8C CAT5 RJ45 MODULAR JACK, 8POS, 1 PORT ModJack;RightAngle;8Position;Cat5;ShieldedwithLED Socket; RJ45; PIN:8; Cat:5; shielded, with LED; gold plated; THT TE Connectivity 直角 母 RJ45 模块化插孔 , Cat5, 无屏蔽, 印刷电路板安装型 IMJ,1X1,PNL GRD,LED(G/Y), SN |
| 分类 |
商业参数
| 零件号别名 | CA8679-000 PER-2-406549-1 | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 441 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | 认证机构 | UL,CSA |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| LED | With | 以太网 | Cat 5 |
| 额定电压 | 150 V | 供电电压 | :Cat 5 |
| 介电强度 | :1000V | 击穿电压 | :1000VAC |
| 最大额定电流 | 1.5 A | 绝缘电阻 | :500Mohm |
| 最小供电电压 | 150VAC | 连接器类型 - 电压输入 | :Cat5 |
机械参数
| 颜色 | Black | 深度 | 15.75 mm |
| 间距 | 2.03 mm | 高度 | 14.54 mm |
| 重量 | 0.004 | 材料（通用） | :High Temperature Thermoplastic |
| LED颜色 | None | 包装方式 | Tray |
| 屏蔽 | Shielded, EMI Finger | 方向 | 90° Angle (Right) |
| 屏蔽类型 | Yes | 端接方式 | Solder |
| 外壳颜色 | Black | 反向插孔 | Yes |
| 安装类型 | Through Hole | 外壳镀层 | Tin |
| 卡扣方向（或“接线片方向”） | Up | 行程角度 | Right |
| 连接器类型 | -3.43 [-0.135] | 接触镀层 | Matte Tin over Nickel |
| 法兰特征 | No | 接地类型 | Panel Ground and PCB Ground |
| 安装样式 | Thru Hole | 排数 | 1 |
| 电路板厚度 | 1.57 [0.062] | 高度（英寸） | 13.34 [0.525] |
| 外形（宽 x 高） | Standard | 屏蔽材料 | Copper Alloy |
| 触头材料 | Phosphor Bronze | 壳体材料 | High Temperature Thermoplastic |
| 总长度 | 17.27 mm | 包装数量 | Tray |
| 面板安装类型 | With | 主要材料 | Modular |
| 连接器 - 电缆 | socket | 端接样式 | Solder |
| 连接器颜色 | :Black | 触点数 | 8 |
| 面板开孔形状 | Top, Top and Side | 接触件端接 | :Through Hole Right Angle |
| 位数 | 8 | 电缆未暴露长度 | 2.54 [0.100] |
| 接触镀层厚度 | 50µin (1.27µm) | 触点材料 - 镀层 | gold plated |
| 外壳与棱镜材料 | :Polyester (PCT) | 第一连接器安装特征 | 8p8c |
产品信息
| SPG | 1 | 工作模式 | Single |
| 备注 | Recommended applications: Fast Ethernet, 10Base-T Ethernet, and 10/100 Base-T E | 类型 | RJ-45 |
| 连接器性别 | F | 系列 | 406 |
| 产品特性 | Board Guide | 端口样式 | Single |
| USOC 编码 | RJ45 | 性能 | Cat5 |
| 编码、键控 | No | 产品子类型 | Jack |
| 规格说明 | RJ45 | 类别编号 | Cat 5 |
| 端口数 | 1 | 单元数量 | 1 |
| 插孔配置 | 1 x 1 | 射频系列/标准 | 406549 |
| 性能类别 | Cat 5 | 加载位置数 | 8 |
| 位置/触点数量 | 8p8c (RJ45, Ethernet) | ||
环境参数
| 额定等级 | Cat5 | 机械寿命 | :750 mating cycles |
| 工作温度 | -40°C ~ 85°C | ||
