336330-1

制造商	TE Connectivity Ltd.

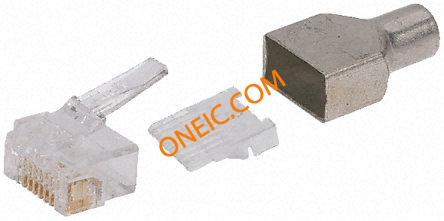

描述	Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Carton Cat 5 Modular Plugs and Accessories CONN MOD PLUG 8P8C SHIELDED Shielded Cat5 RJ45 EMT modular data plug Modular Connectors / Ethernet Connectors MOD PLUG KIT 8W SHLD Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Carton Cat 5 Product Highlights:PlugNumber of Positions = 8Shielded8 Contacts LoadedCable Style = Round StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, PLUG, RJ45, EMT ShieldedCat5RJ45EMTmodulardataplug Plug; RJ45; PIN:8; Cat:5e; shielded; gold plated; Pin layout:8p8c
分类	连接器解决方案模块化连接器模块化连接器（通用型）

商业参数

产品	Modular Plugs	产品类别	Modular Connectors / Ethernet Connectors
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
材料阻燃等级	UL 94 V-2

电气参数

以太网	Cat 5e	额定电压	150 V
工作电压	:150VAC	击穿电压	:1000VAC
最大额定电流	:1.5A	绝缘电阻	:500Mohm
连接器类型 - 电压输入	:Cat5

机械参数

颜色	Translucent - Clear	深度	23.5mm
间距	1.02 mm	长度	0.921" (23.40mm)
重量	0.0393	材料（通用）	:Polycarbonate
包装方式	Bulk	屏蔽	Shielded
电缆类型	Round Cable, Stranded Wires	导线线规	24-26 AWG
方向	Straight	端接方式	Crimp
安装类型	Cable Mount	行程角度	Straight
电缆直径	5.3...6mm	连接器类型	:RJ45
接触镀层	Gold	安装样式	Cable
屏蔽材料	Brass	触头材料	Phosphor Bronze
壳体材料	Polycarbonate (PC)	包装数量	1
主要材料	Modular	连接器 - 电缆	plug
触点数	8	接触件端接	:IDC / IDT
位数	:8	接触镀层厚度	50µin (1.27µm)
触点材料 - 镀层	gold plated	第一连接器安装特征	8p8c
外径-未扩张	:6.01mm

产品信息

SPG	1	类型	Modular Plug
连接器性别	PL	系列	336
产品特性	Molded Boot	性能	Cat5
规格说明	RJ45	端口数	1
单元数量	1	性能类别	Cat 5e
位置/触点数量	8p8c (RJ45, Ethernet)

环境参数

额定等级	Cat5e	机械寿命	:750 mating cycles
工作温度	:60°C

文档与媒体

catalog_2010_ch03_cat5e_82164-3_20110104.pdf

39615.pdf

336330-1?RQPN=336330-1

相关型号

790163-1

te connectivity / amp

Hand Tool Assembly And Die Assembly Crimpers PC CAT 6 TOOL 5.40 HEX 8.6 LG TOOL HAND W/DIE SET CAT 6 AMP EMT plug termination tool CRIMP TOOL Crimper;Ratchet;26-24AWG;ModularPlug;Cat6;790163-2Die;PRO-CRIMPERIII Crimping tool, 790163-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 RJ MODULAR PLUG 8 Way 压接工具 , 适用于26 → 24 AWG 线规格

¥1535.9760

详情

790163-2

te connectivity / amp

Connector Accessories Modular Plug Tool Die Set Punches & Dies CAT 6 DIE SET 5.40 HEX 8.6 LG TOOL DIE SET ONLY CAT 6 Pro-Crimper Ii Hand Tool And Die Sets CAT6DIESET5.40HEX8.6LG

¥1782.0000

详情

2-231652-1

te connectivity / amp

Modular Plug Hand Tool Crimpers HAND TOOL Hand Tools HAND TOOL TOOL CRIMP MOD 8POS WITH DIE AMP RJ45 modular plug termination tool CRIMP TOOL Crimper;Ratchet;ModularPlug;8-PosLineKeyed,Non-Keyed;853400-1Die Crimp tool, 2-231652-7, TE Connectivity TE Connectivity 8 Position Modular Plug RJ45 压接工具

¥1119.0960

详情

737893-2

te connectivity / amp

Connector Accessories 8 POS Modular Plugs Boot Gray Carton Modular Plugs and Accessories STRAIN RELIEF, EMT, GREY

¥2.0160

详情

5-737893-7

te connectivity / amp

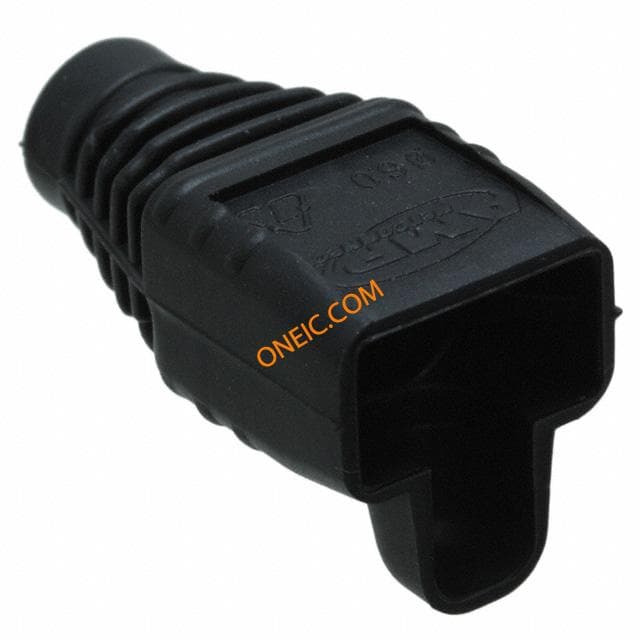

Connector Accessories Boot Black Box CONN ACCY BOOT BLACK Modular Connectors / Ethernet Connectors MOD PLUG BOOT 8W BLK DIAM MAX 6 0 Connector Accessories Boot Black Box Product Highlights:BootNumber of Positions = 8Boot Type = SnaglessBoot Color = BlackPackaging Method = BoxSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, MODPLUGSNAGLESSBOOT,8P,BLACK,DIAMMAX6.0MM
