点击放大查看

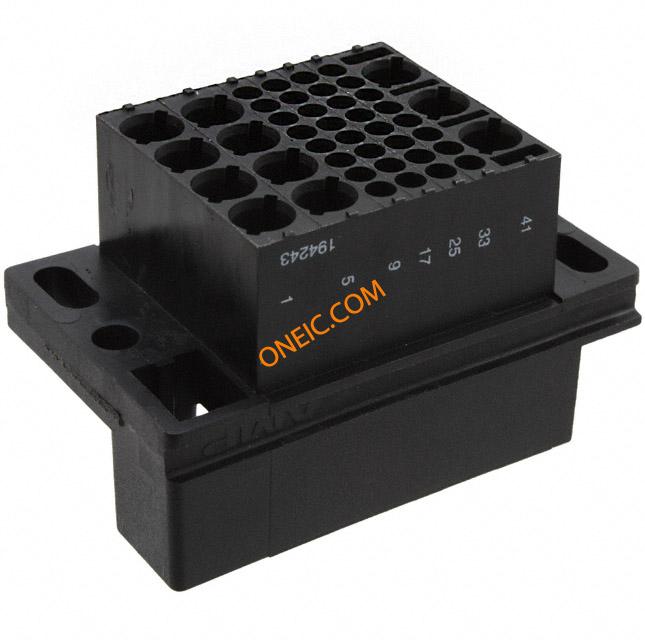

194243-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 43 POS Crimp ST Cable Mount Drawer Connectors, High Current AMPOWER HOUSING RCPT 43 POS Heavy Duty Power Connectors AMPOWER HOUSING,RCPT 43 POS 194243-1 Conn Housing RCP 43 POS Crimp ST Cable Mount Product Highlights:HousingConnector Type = ReceptacleNumber of Positions = 43Without 6/32 InsertSearch Keywords:Special Application, Precision Pin and Socket, cabled power, Card Edge, Board-to-Board, Power, Wire-to-Board, AMPOWER HOUSING,RCPT,43 POS |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 额定交流电压 | 250 |
机械参数
| 包装方式 | Bulk | 外壳颜色 | 8 - 3mm contacts; 32 - Signal/Size 16 contacts; 3 - 3mm contacts |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 排数 | 7 | 封装形式 | Receptacle |
| 连接器样式 | Drawer | 连接器用途 | Receptacle |
| 壳体材料 | Polyester | 端接样式 | 插座, 插针 |
| 触点数 | 43 | 位数 | 43 |
| 兼容外壳尺寸（如TM-700等） | 8 - 3mm 端子 - 32 - 信号/尺寸 16 端子 - 3 - 3mm 端子 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 制造商全称 | AMP |
| 产品子类型 | AMPOWER | ||
