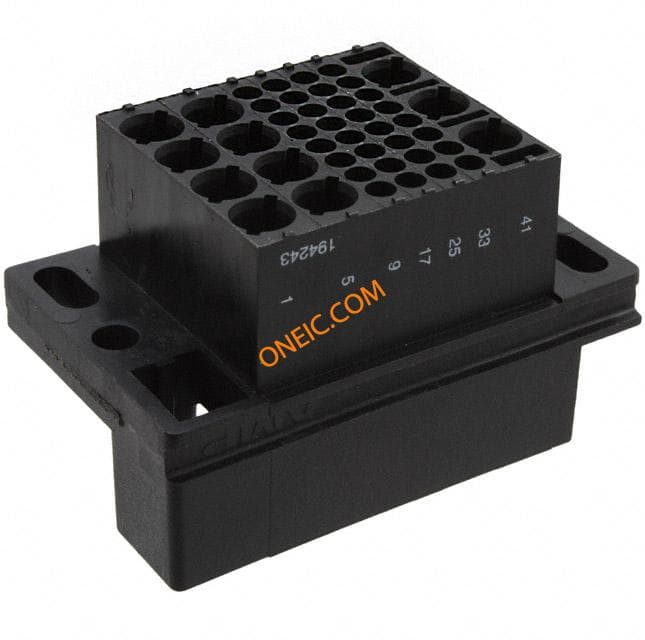

点击放大查看
194242-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 43 POS ST Panel Mount Drawer Connectors, High Current AMPOWER HOUSING,PLUG,43 POS Power to the Board 43P PLUG HOUSING Conn Housing PL 43 POS ST Panel Mount Product Highlights:HousingConnector Type = PlugNumber of Positions = 43Without 6/32 InsertSearch Keywords:Special Application, Precision Pin and Socket, cabled power, Card Edge, Board-to-Board, Power, Wire-to-Board, |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 额定交流电压 | 250 |
机械参数
| 包装方式 | Tray | 外壳颜色 | 8 - 3mm contacts; 32 - Signal/Size 16 contacts; 3 - 3mm contacts |
| 安装类型 | Straight | 连接器类型 | Plug |
| 安装样式 | Through Hole | 排数 | 1 |
| 封装形式 | Plug | 连接器样式 | Drawer |
| 连接器用途 | Plug | 壳体材料 | Polyester |
| 端接样式 | Solder Pin | 第一触头极性 | Pin (Male) |
| 触点数 | 43 | 位数 | 43 |
| 兼容外壳尺寸（如TM-700等） | 8 - 3mm 端子 - 32 - 信号/尺寸 16 端子 - 3 - 3mm 端子 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品特性 | Guide Pin |
| 制造商全称 | AMP | 产品子类型 | AMPOWER |
文档与媒体
