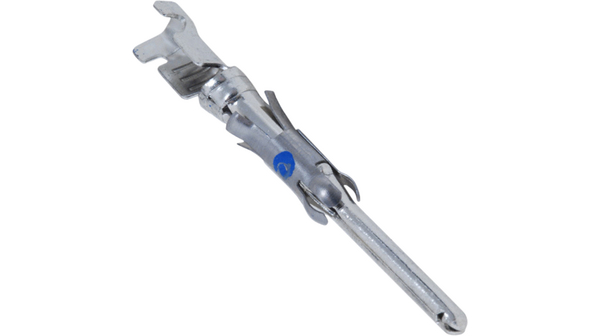

点击放大查看
164164-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 18-16AWG SIZE 16 TIN Crimp contact, pin, type III+, size16 Pin & Socket Connectors PIN 18-16 BR/SN GRND TYPE III Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.01 - 2.49 mmCopper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 18-16AWG, CRIMP Contact,Multimate;Pin;16;CopperAlloy;Grounding;Tin;18-16AWG;Crimp Crimp Contact 13 A, 164164-1, TE Connectivity TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀锡触点 PIN ASS |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 200 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHS,ELVCompliants |
| 海关税号 | 85369010 | 抗辐射加固 | No |
电气参数
| 输出电流 | 13A | 最大额定电流 | 13 A |
机械参数
| 重量 | 0.002 | 镀层 | Tin |
| 材料（通用） | Copper Alloy | 包装方式 | Bulk |
| 导线类型 | Regular | 出线方向 | No |
| 导线线规 | 16-18 AWG | 端接方式 | Crimp |
| 触点尺寸 | :16 | 触头类型 | Ground |
| 引脚直径 | 0.062in. | 安装类型 | Straight |
| 插针或插孔 | Pin | 外壳镀层 | Not Required |
| 连接器类型 | Connector Circular | 接触镀层 | Tin-Lead |
| 安装样式 | Cable | 触头材料 | Copper Alloy |
| 总长度 | 27.56mm | 框架材料 | StainlessSteel |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 1 POS | 接触件尾部长度 | 16 |
| 接触件端接 | Crimp | 绝缘直径 | 0.079to0.098in. |
| 镀层厚度（通用） | 78.7µin (2.00µm) | ||
产品信息
| 类型 | Stamped | 等级 | Commercial |
| 连接器性别 | PIN | 系列 | Type III+ |
| 制造商全称 | AMP | 产品子类型 | Contacts |
| 适用产品/相关产品 | :Circular Plastic & Circular Metal Connectors, G Series, M Series Multimate Connectors | ||
