194189-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Drawer Connectors, High Current CONN PIN 14-12AWG CRIMP SILVER Heavy Duty Power Connectors PIN 14-12 AWG SILVER Drawer Connectors, High Current Product Highlights:ContactPinContact Mating Sequence = SecondPin Type = CrimpPin Diameter = 3.00 mmSearch Keywords:Special Application, Precision Pin and Socket, cabled power, Card Edge, Board-to-Board, Power, Wire-to-Board, PIN ASSY., CRIMP |
| 分类 |
商业参数
| 标准包装规格 | 100 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 15A | ||
机械参数
| 镀层 | 银 | 包装方式 | Bulk |
| 绝缘类型 | Without | 导线线规 | 12-14 AWG |
| 端接方式 | Crimp | 触点形式 | Straight |
| 触头类型 | Signal | 安装类型 | 压接 |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Silver Over Nickel | 壳体镀层 | Nickel |
| 插入件材料 | 铜合金 | 触头材料 | Copper |
| 包装数量 | 100 | 端接样式 | 插针 |
| 接触件端接 | Crimp | 触点镀层 | 银 |
| 接触件表面处理 - 配合 | 银 | 法兰上方插针尺寸 | 3 mm [ .118 in ] |
| 触点材料 - 配合 | Second | ||
产品信息
| 备注 | 可根据要求提供其他线径和插接级别。 | 类型 | Power |
| 连接器性别 | PIN | 产品特性 | Standard Not Hot Pluggable |
| 产品子类型 | Contacts | 应用细节 | Power |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
194279-1
te connectivity / amp
Conn Housing RCP 11 POS ST Heavy Duty Power Connectors HOUSING RCPT 11 POS Drawer Connectors, High Current CONN HOUSING RCPT 11POS Drawer Connectors, High Current Product Highlights:HousingConnector Type = ReceptacleNumber of Positions = 11Without 6/32 InsertSearch Keywords:Special Application, Precision Pin and Socket, cabled power, Card Edge, Board-to-Board, Power, Wire-to-Board, AMPOWER HOUSING,RCPT,11 POS
194280-1
te connectivity / amp
Conn Housing PL 28 POS ST Heavy Duty Power Connectors HOUSING PLUG 28 POS Drawer Connectors, High Current CONN PLUG HOUSING 28POS Drawer Connectors, High Current Product Highlights:HousingConnector Type = PlugNumber of Positions = 28Without 6/32 InsertSearch Keywords:Special Application, Precision Pin and Socket, cabled power, Card Edge, Board-to-Board, Power, Wire-to-Board, AMPOWER HOUSING,PLUG,28 POS
194281-1
te connectivity / amp
Conn Housing RCP 28 POS ST Heavy Duty Power Connectors HOUSING RCPT 28 POS Drawer Connectors, High Current CONN RCPT HOUSING 28POS Drawer Connectors, High Current Product Highlights:HousingConnector Type = ReceptacleNumber of Positions = 28Without 6/32 InsertSearch Keywords:Special Application, Precision Pin and Socket, cabled power, Card Edge, Board-to-Board, Power, Wire-to-Board, AMPOWER HOUSING,RCPT,28 POS
194243-1
te connectivity / amp
Conn Housing RCP 43 POS Crimp ST Cable Mount Drawer Connectors, High Current AMPOWER HOUSING RCPT 43 POS Heavy Duty Power Connectors AMPOWER HOUSING,RCPT 43 POS 194243-1 Conn Housing RCP 43 POS Crimp ST Cable Mount Product Highlights:HousingConnector Type = ReceptacleNumber of Positions = 43Without 6/32 InsertSearch Keywords:Special Application, Precision Pin and Socket, cabled power, Card Edge, Board-to-Board, Power, Wire-to-Board, AMPOWER HOUSING,RCPT,43 POS

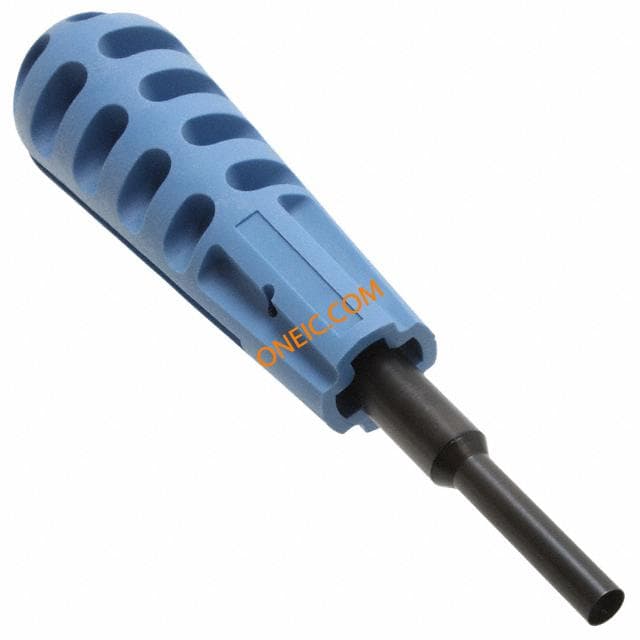

356335-1
