点击放大查看

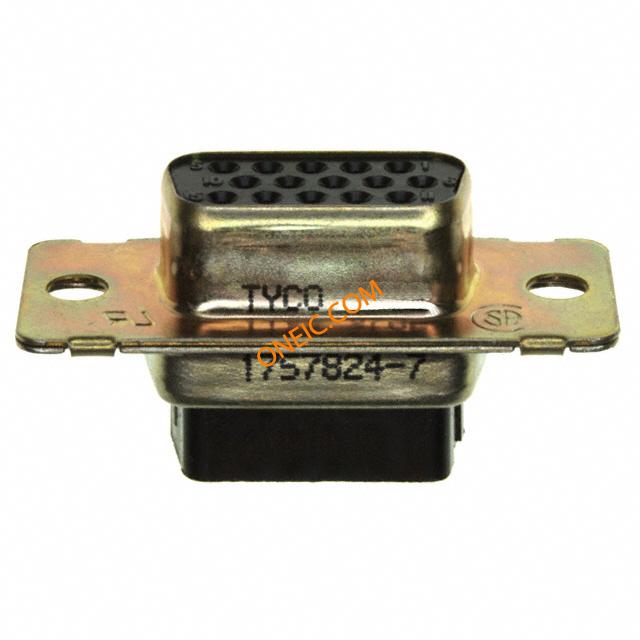

1757824-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 15 POS Crimp ST Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 AMPLIMITE 90 d-sub cable socket,15 way Conn Housing RCP 15 POS Crimp ST Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To WireNumber of Positions = 15Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub SOCKET, DSUB, CRIMP, HD, 15WAY CONN D-SUB RCPT HD 15P SER 90 Conn;D-Sub;CableSocket;15Pos;STR;90Series;Crimp;22AWG TE Connectivity AMPLIMITE 90系列 15路 直 军用压接 D-Sub 连接器, 插座 AMPLIMITE,ASY,RCPT,STD,90,ZN,1 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Compliant | 标准 | MIL-C-24308 |
| 海关税号 | 85369010 | 资质认证 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 连接器阻抗 | No | ||
机械参数
| 深度 | 11.15mm | 宽度 | 12.93mm |
| 高度 | 12.93 mm | 长度 | 31.19mm |
| 重量 | 0.05 | 材料（通用） | Stainless Steel |
| 包装方式 | Bulk | 外壳尺寸 | 1 |
| 导线线规 | 22 | 端接方式 | Crimp |
| 触点尺寸 | 22 | 触头类型 | Crimp Snap-in |
| 非磁性 | No | 安装类型 | Straight |
| 外壳镀层 | Zinc | 行程角度 | Straight |
| 连接器类型 | Crimp | 接触镀层 | Gold over Nickel |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Mounting Holes |
| 排数 | 3 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub, High Density | 本体材料 | :Steel |
| 触头材料 | Copper Alloy | 壳体材料 | Zinc Plated Steel |
| 总长度 | 31.19 mm | 主要材料 | D-Subminiature |
| 尺寸/外形 | 31.19 x 12.93 x 11.15mm | 触点数 | 15 |
| 位数 | 15 | 外壳尺寸-插件 | :DE |
| 衬套/护套类型 | No | 安装孔直径 | 3.05 [.120] |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc |
| 外壳尺寸，连接器布局 | 1 (DE, E) High Density | ||
产品信息
| 备注 | Size 22 sockets supplied with receptacles are loose piece.; | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 90 |
| 密度 | High | 插座类型 | Without |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 连接类型 | Wire | 设备部件号 | M24308/2-286 |
| 适用产品/相关产品 | :AMPLIMITE 90 Series Connectors | ||
环境参数
| 工作温度 | -55C to 125C | ||
