1757823-7

点击放大查看

1757823-7

制造商
TE Connectivity Ltd.

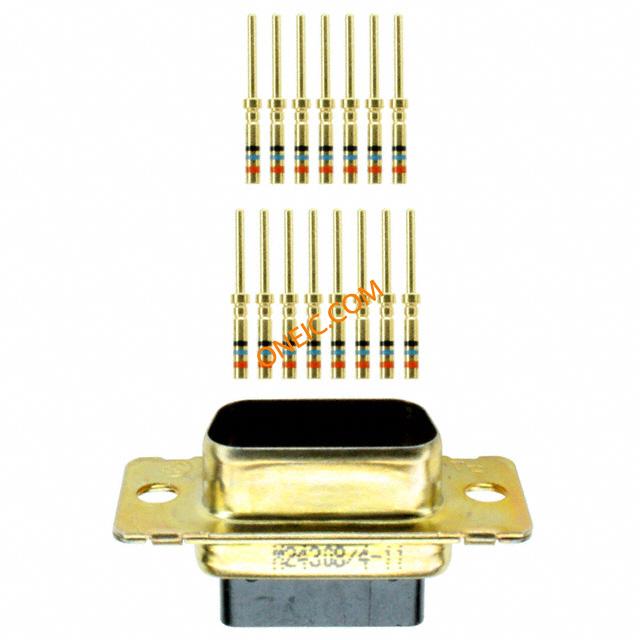

描述Conn High Density D-Sub PIN 15 POS Crimp ST Panel Mount 15 Terminal 1 Port D-Sub High Density Connectors 15 POS PLUG, CRIMP HIGH DENSITY Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Conn High Density D-Sub PIN 15 POS Crimp ST Panel Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To WireNumber of Positions = 15Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB CONNECTOR, HIGH DENSITY, 15POS, PLUG CONN D-SUB PLUG HD 15POS CRIMP Conn;D-Sub;CablePlug;15Pos;STR;90Series;Crimp;22AWG AMPLIMITE,ASY,PLUG,STD,90,ZN,1,CT
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名M24308 M24308/4-11产品类别D-Sub High Density Connectors
标准包装数量Bulk

合规参数

RoHSRoHS Compliant标准MIL-C-24308
海关税号85366910资质认证No
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
认证机构标志Yes

电气参数

量程（°/s）:TE CONNECTIVITY - Amplimite 90 Series连接器阻抗No
最大额定电流7.5A

机械参数

重量0.005材料（通用）Stainless Steel
包装方式Bulk外壳尺寸1
导线线规22端接方式Crimp
触点尺寸22触头类型Crimp Snap-in
非磁性No安装类型Panel Mount
外壳镀层Cadmium行程角度Straight
连接器类型Crimp接触镀层Gold
法兰特征Housing/Shell (Unthreaded)安装样式Wire
引脚数With排数3
外壳材料（壳体）Steel连接器样式D-Sub, High Density
本体材料:Steel触头材料Copper Alloy
主要材料D-Subminiature端接样式Crimp
触点数15接触件端接:Crimp
位数15衬套/护套类型No
安装孔直径3.05 [.120]外壳材料及表面处理Steel, Yellow Chromate Plated Zinc
外壳尺寸，连接器布局1 (DE, E) High Density

产品信息

备注"F" is stamped on connectors following M24308 part number as required.类型High Density D-Sub
连接器性别PIN系列90
密度High制造商全称AMP
产品子类型Connector连接类型Wire
设备部件号M24308/4-11

环境参数

工作温度-55°C ~ 125°C

文档与媒体

在线文档
1757823-7?RQPN=1757823-7
在线文档
TE.Connect?C=1&M=BYPN&PID=417132&PN=1757823-7&I=13

相关型号

208872-1

208872-1

te connectivity / amp

Conn D-Subminiature SKT 15 POS Solder ST Thru-Hole 15 Terminal 1 Port D-Sub High Density Connectors RCPT 15 POS STR PCB Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RCPT 15POS STR PCB Conn D-Subminiature SKT 15 POS Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To Printed Circuit BoardNumber of Positions = 15Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub RECPT ASSY,15 POSN,AMPLIMITE

¥718.7760
详情
1757826-1

1757826-1

te connectivity / amp

Conn Housing RCP 15 POS Crimp ST Cable Mount D-Sub High Density Connectors ASSY RCPT FB 90 ZN 1 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To WireNumber of Positions = 15Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub

¥84.6000
详情
1757824-7

1757824-7

te connectivity / amp

Conn D-Subminiature SKT 15 POS Crimp ST Panel Mount 15 Terminal 1 Port D-Sub High Density Connectors 15 POS RECPT, CRIMP HIGH DENSITY Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Conn High Density D-Sub SKT 15 POS Crimp ST Cable Mount 15 Terminal 1 Port Conn High Density D-Sub SKT 15 POS Crimp ST Panel Mount 15 Terminal 1 Port Conn High Density D-Sub SKT 15 POS Crimp ST Panel Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To WireNumber of Positions = 15Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB CONNECTOR, HIGH DENSITY, 15POS, RCPT CONN D-SUB RCPT HD 15P SER 90 Conn;D-Sub;CableSocket;15Pos;STR;90Series;Crimp;22AWG AMPLIMITE,ASY,RCPT,STD,90,ZN,1,CT

¥230.7600
详情
1757824-1

1757824-1

te connectivity / amp

Conn Housing RCP 15 POS Crimp ST Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 AMPLIMITE 90 d-sub cable socket,15 way Conn Housing RCP 15 POS Crimp ST Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To WireNumber of Positions = 15Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub SOCKET, DSUB, CRIMP, HD, 15WAY CONN D-SUB RCPT HD 15P SER 90 Conn;D-Sub;CableSocket;15Pos;STR;90Series;Crimp;22AWG TE Connectivity AMPLIMITE 90系列 15路 直 军用压接 D-Sub 连接器, 插座 AMPLIMITE,ASY,RCPT,STD,90,ZN,1

¥41.4000
详情
211536-1

211536-1

te connectivity / amp

Conn Housing RCP 15 POS Crimp ST Panel Mount D-Sub High Density Connectors ASSY RCPT FB 90 1 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 D-Sub Standard Connectors ASSY RCPT FB 90 1 AMPLIMITE,ASY,RCPT,FB,90,1 AMPLIMITE,ASY,RCPT,FB,90,1 Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub

¥85.8600
详情
1757826-7

1757826-7

te connectivity / amp

Conn High Density D-Sub SKT 15 POS Crimp ST Cable Mount 15 Terminal 1 Port D-Sub High Density Connectors ASSY RCPT FB 90 ZN 1 CONT Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Conn High Density D-Sub SKT 15 POS Crimp ST Cable Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To WireNumber of Positions = 15Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE,ASY,RCPT,FB,90,ZN,1,CONT

¥196.1280
