1757824-7

点击放大查看

1757824-7

制造商
TE Connectivity Ltd.

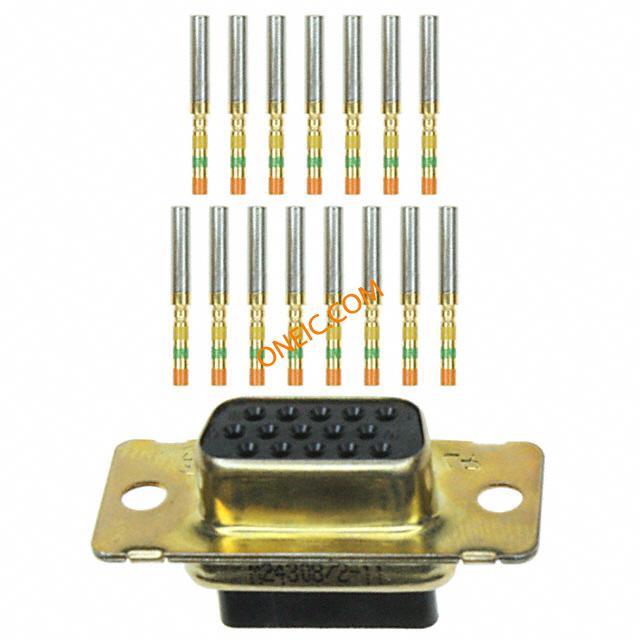

描述Conn D-Subminiature SKT 15 POS Crimp ST Panel Mount 15 Terminal 1 Port D-Sub High Density Connectors 15 POS RECPT, CRIMP HIGH DENSITY Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Conn High Density D-Sub SKT 15 POS Crimp ST Cable Mount 15 Terminal 1 Port Conn High Density D-Sub SKT 15 POS Crimp ST Panel Mount 15 Terminal 1 Port Conn High Density D-Sub SKT 15 POS Crimp ST Panel Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To WireNumber of Positions = 15Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB CONNECTOR, HIGH DENSITY, 15POS, RCPT CONN D-SUB RCPT HD 15P SER 90 Conn;D-Sub;CableSocket;15Pos;STR;90Series;Crimp;22AWG AMPLIMITE,ASY,RCPT,STD,90,ZN,1,CT
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名M24308 M24308/2-11产品类别D-Sub High Density Connectors
标准包装数量Bulk

合规参数

RoHSRoHS Compliant标准MIL-C-24308
海关税号85369010抗辐射加固No
资质认证No无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant认证机构标志Yes

电气参数

量程（°/s）:TE CONNECTIVITY - Amplimite 90 Series连接器阻抗No
最大额定电流7.5A

机械参数

深度16.84 mm高度12.92 mm
重量0.009材料（通用）Stainless Steel
包装方式Bulk外壳尺寸1
导线线规22端接方式Crimp
触点尺寸22触头类型Crimp Snap-in
非磁性No安装类型Straight
外壳镀层Zinc行程角度Straight
连接器类型Crimp接触镀层Gold
法兰特征Housing/Shell (Unthreaded)安装样式Wire
排数3外壳材料（壳体）Steel
连接器样式D-Sub, High Density本体材料:Metal
触头材料Copper Alloy壳体材料Polyphenylene Sulfid
总长度31.19 mm主要材料D-Subminiature
端接样式Crimp触点数15
接触件端接:Crimp位数15
衬套/护套类型No安装孔直径3.05 [.120]
外壳材料及表面处理Steel, Yellow Chromate Plated Zinc外壳尺寸，连接器布局1 (DE, E) High Density

产品信息

备注Size 22 sockets supplied with receptacles are loose piece.;类型High Density D-Sub
连接器性别Female系列90
密度High插座类型With
制造商全称AMP产品子类型Connector
连接类型Wire端口数1 Port
设备部件号M24308/2-11
