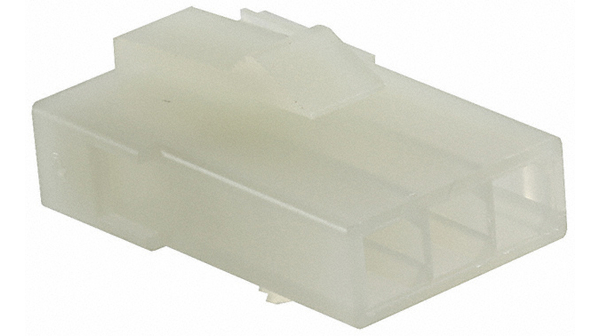

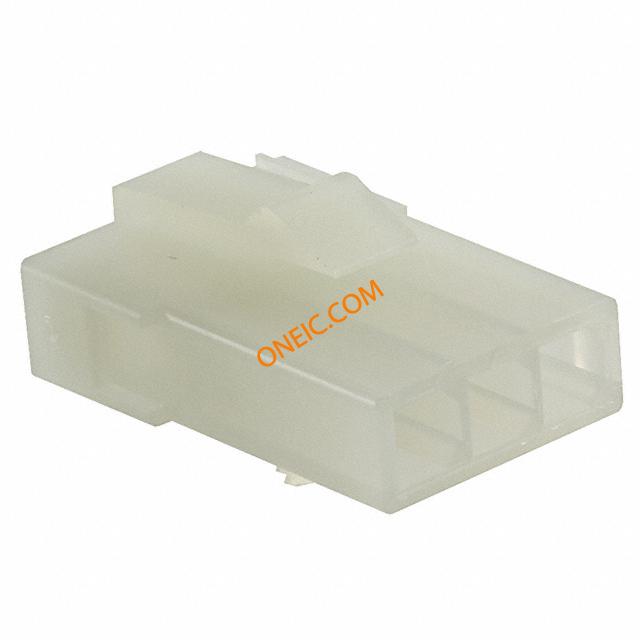

172329-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RECEPT/CAP 3POS MATE-N-LOK Housing,cap PM,Mate-n-lok,3 Way,Natural Pin & Socket Connectors HSG CAP 1X03C PNL V2 Conn Housing RCP 3 POS 4.2mm Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 3WAY MiniUniversalMate-N-LokHousing;Receptacle;3Position Socket housing Pitch4.14 mm Poles 1 x 3 Single row / for panel mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172329-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.2mm 节距 3 路 直 母 压接连接器外壳 MINI UNIVERSAL MATE-N-LOK CAP HOUSING 3P |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :UL 94V-2 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 工作电压 | :300V | 最大额定电流 | 9.5/Contact A |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK |
机械参数
| 颜色 | Natural | 深度 | 23.7mm |
| 间距 | 4.2 mm | 高度 | 13.6 mm |
| 长度 | 16mm | 重量 | 0.002 |
| 材料（通用） | :Polyamid 6.6 | 锁定类型 | Positive Lock |
| 包装方式 | Bulk | 导线线规 | :18AWG |
| 触头类型 | Male or Female | 柱间距 | 4.14 [.163] |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 释放力 | :0.5N | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | Panel |
| 排数 | 1 | 封装形式 | :In-Line |
| 插入力 | :4N | 壳体材料 | Nylon |
| 总长度 | 16 mm | 包装数量 | One Piece Housing |
| 端接样式 | Quick Connect | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Clear | 触点数 | 3 |
| 接触件端接 | Crimp | 位数 | 3 |
| 典型触点布局 | In-Line | 接触镀层厚度 | 0.99 [0.039] |
| 线规或范围 - AWG | :26AWG | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MATE-N-LOK |
| 产品子类型 | Housing | 模块/板类型 | No |
| 电路数 | 3 | 适用产品/相关产品 | Wire-to-Board Connector |
环境参数
| 工作温度 | :105°C | ||
