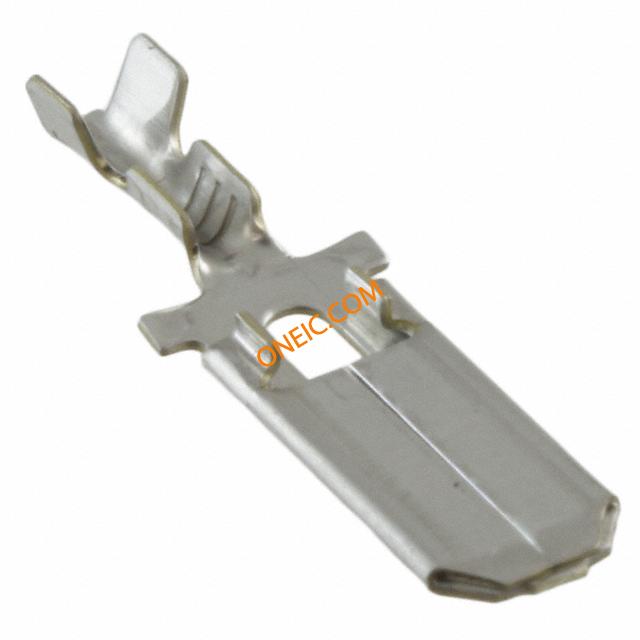

170349-2
| 制造商 | |
| 描述 | Quick Disconnect Terminal 20-22AWG M 26.9mm 7.5mm Pre-Tin Strip Terminal Block Tools & Accessories 250 SERIES F-F TAB W/O LATCH Tab & Receptacle Connectors (AMP 250 Series Housing Lance Connectors) CONN TAB CONTACT 22-20AWG CRIMP Tab crimp contact, 250 lance, AWG 22-20 Terminals 250 SERIES F-F TAB W/O LATCH Contact PIN Crimp ST Cable Mount Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactTabWire Range = 0.30-0.60² [22-20] mm [AWG]Wire Insulation Diameter = 1.50 - 2.20 mmSearch Keywords:Quick Connect, Quick Disconnect, terminals and splices, wire to wire, CONN QC TAB 20-22AWG 0.250 CRIMP CONTACT,TAB,0.30-0.60MMª TE Connectivity FASTON .250 系列 压接接头端子, 6 x 0.8mm, 镀锡触芯 FF 250 TAB 22-20AWG TPBR WITHOUT LATCH |
| 分类 |
商业参数
| 产品 | Tools & Accessories | 其他名称 | A111039CT |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 6000 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 最大频率 | Single | 开关功能 | 快速断开, 快速断开 |
机械参数
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 0.250" (6.35mm) | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.543" (13.80mm) | 导线线规 | 20-22 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆直径 | 0.5mm² | 电缆材料 | No |
| 连接器类型 | Yes | 接触镀层 | Pre-Tin |
| 连接器用途 | Wire & Cable | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 总长度 | 0.957" (24.30mm) |
| 包装数量 | Strip | 导线端接方式 | No |
| 端接样式 | 公端 | 适用端子尺寸 | 1.5 – 2.2 mm [ .059 – .087 in ] |
| 接触件尾部长度 | 0.8mm | 绝缘直径 | 1.50 â 2.20 [0.059 â 0.087] |
| 绝缘材料 - 类型 | No | 焊盘布局尺寸 | 6 x 0.8mm |
| 法兰上方插针尺寸 | 6 | 线规或范围 - AWG | 20AWG |
| 线规或范围 - mm² | 0.30-0.60² [22-20] | 触点镀层厚度 - 柱 | 6mm |
产品信息
| 类型 | Quick Disconnect Terminal | 连接器性别 | M |
| 系列 | 250 | 产品子类型 | Contact |
环境参数
| 工作温度 | -30 – 105 | ||
