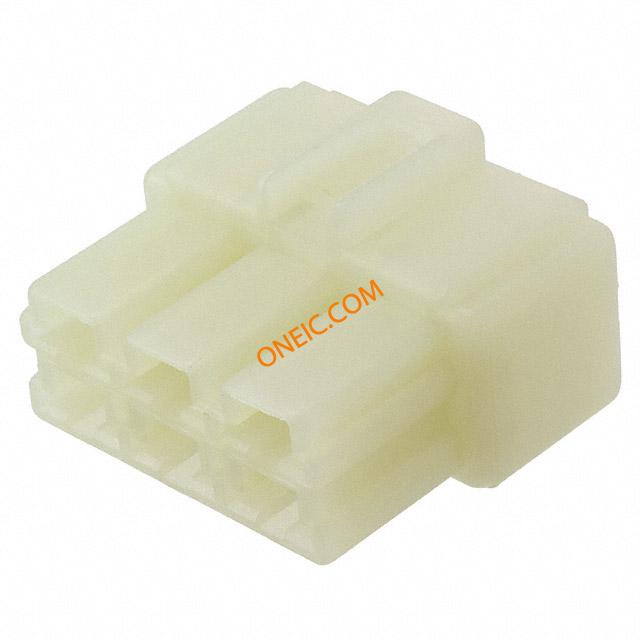

点击放大查看
171897-1
| 制造商 | |
| 描述 | Conn Housing RCP 6 POS Crimp ST Tab & Receptacle Connectors (AMP 250 Series Housing Lance Connectors) CONN CAP 6POS FREE HANGING NAT Housing, cap, 6 way, 250 lance, natural Automotive Connectors 250 FASTON HSG LANCE 6P CAP Conn Housing RCP 6 POS Crimp ST Product Highlights:HousingNumber of Positions = 6Receptacle (Cap)Mount = Free HangingColor = NaturalSearch Keywords:Quick Connect, Quick Disconnect, terminals and splices, wire to wire, Housing,cap,6way,250lance,natural TE Connectivity FASTON .250 系列 6 触点 尼龙 压接外罩 FF 250 REC HSG 6P NYLON NAT |
| 分类 |
商业参数
| 产品 | Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Natural | 长度 | 31.5mm |
| 材料（通用） | Nylon | 包装方式 | 袋 |
| 外壳样式 | With | 触头类型 | Receptacle |
| 基体材料 | Nylon | 安装类型 | Straight |
| 端子尺寸 | 0.250" (6.35mm) | 端子类型 | Quick Connect, Disconnect |
| 连接器类型 | Tab | 安装样式 | Free Hanging |
| 排数 | 2 | 封装形式 | Receptacle Housing |
| 连接器用途 | Wire/Cable | 壳体材料 | Nylon |
| 包装数量 | 100 | 主要材料 | 尼龙 |
| 连接器颜色 | Natural | 触点数 | 6 |
| 堆叠方向 | Top to Bottom and Side to Side | 位数 | 6 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | FASTON .250 | 产品子类型 | Housing |
| 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects | ||
