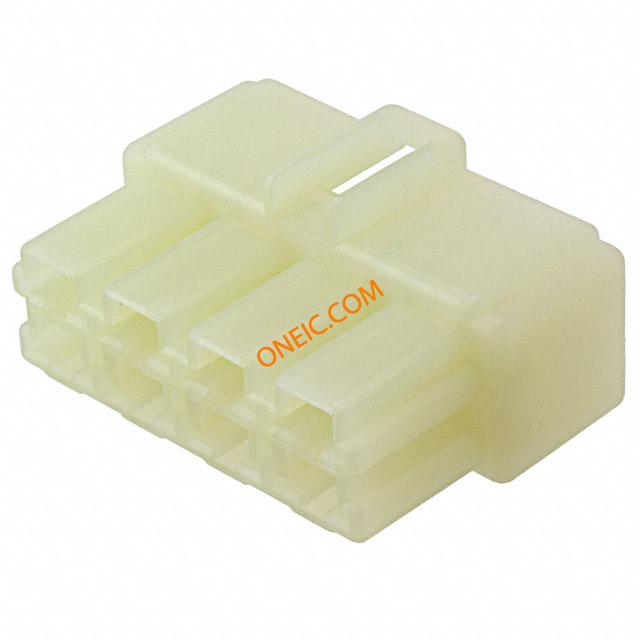

172135-1
| 制造商 | |
| 描述 | Conn Housing RCP 8 POS 9mm Crimp ST Cable Mount Headers & Wire Housings RCPT CAP 8 POS F/H Tab & Receptacle Connectors (AMP 250 Series Housing Lance Connectors) CONN RCPT CAP 8POS FREE HANGING Housing, cap, 8 way, 250 lance, natural Conn Housing RCP 8 POS 9mm Crimp ST Cable Mount Product Highlights:HousingNumber of Positions = 8Receptacle (Cap)Mount = Free HangingColor = NaturalSearch Keywords:Quick Connect, Quick Disconnect, terminals and splices, wire to wire, 250,HSNG,CAP,FREEHANG,8W TE Connectivity FASTON .250 系列 8 触点 尼龙 压接外罩 FF 250 REC HSG 8P NYLON NAT |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Natural | 间距 | 9 mm |
| 长度 | 40.5mm | 材料（通用） | Nylon |
| 包装方式 | Bulk | 外壳样式 | With |
| 基体材料 | Nylon | 安装类型 | Straight |
| 端子尺寸 | 0.250" (6.35mm) | 端子类型 | Quick Connect, Disconnect |
| 连接器类型 | Tab | 排数 | 2 |
| 封装形式 | Receptacle Housing | 连接器用途 | Wire/Cable |
| 壳体材料 | Nylon | 包装数量 | 100 |
| 主要材料 | 尼龙 | 连接器颜色 | Natural |
| 触点数 | 8 | 堆叠方向 | Top to Bottom and Side to Side |
| 位数 | 8 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | FASTON .250 | 产品子类型 | Housing |
| 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects | ||
