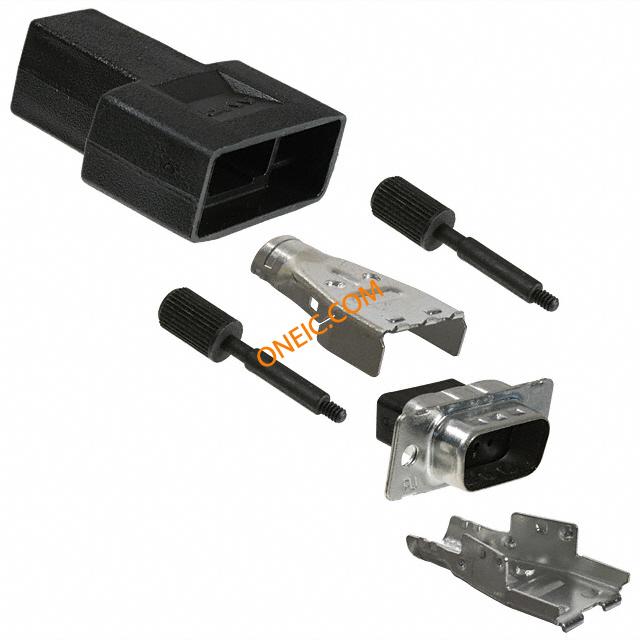

1658655-1

制造商	TE Connectivity Ltd.
描述	Conn Housing PL 9 POS Crimp ST Bulk D-Sub Standard Connectors HDP-20 D 9P Standard Cable Connectors CONN D-SUB PLUG 9POS W/O CONT Conn Housing PL 9 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9ShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG & BACKSHELL, D, 9WAY Conn;D-Sub;CablePlug;9Pos;STR;HDP-20Series;CrimpSnap;20AWG;ShieldingEncl.Kit Plug; D-Sub; HDP-20; PIN:9; male; shielded, w/o terminals; crimped KIT,HDP-20,ENCLSUR,PLUG,SIZE 1
分类	连接器解决方案D-Sub连接器

商业参数

产品类别	D-Sub Standard Connectors	标准包装数量	Bulk
工厂包装数量	100

合规参数

RoHS	RoHS Compliant	标准	UL94V-0
海关税号	85369010	认证机构	ULRecognized,ULListedandCSACertified

电气参数

额定电压

250VAC

机械参数

颜色	Black	高度	16 mm
重量	0.026	包装方式	Bulk
外壳尺寸	1	导线线规	20
端接方式	Crimp	触头类型	Signal
外壳颜色	Black	安装类型	Straight
外壳镀层	Tin over Copper	行程角度	Straight
电缆直径	0.35"	连接器类型	Plug for Male Contacts
法兰特征	Cable Side (4-40)	安装样式	Wire
排数	2	壳体镀层	:Tin
外壳材料（壳体）	Steel	连接器样式	D-Sub
插入件材料	Thermoplastic	锁定特性	threaded joint
本体材料	:Metal	屏蔽材料	Steel
壳体材料	Nylon	总长度	34.41 mm
主要材料	D-Subminiature	连接器 - 电缆	plug
端接样式	Crimp	连接器颜色	black
触点数	9	介电材料	Polyamide (PA), Nylon, Glass Filled
绝缘直径	0.19-0.375"	位数	9
外壳尺寸-插件	:1	外壳镀层厚度	200µin (5.08µm)
外壳材料及表面处理	Steel, Tin Plated	螺纹/螺钉/孔尺寸	UNC4-40
外壳与棱镜材料	plastic	外壳尺寸，连接器布局	1 (DE, E)

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	PL	系列	HDP-20
产品特性	Backshell, Grounding Indents, Shielded	硬件配件	Jackscrews
制造商全称	HDP-20	适配器系列	HDP-20
应用细节	Commercial	适用产品/相关产品	:HDP-20 Series D Sub Connectors
