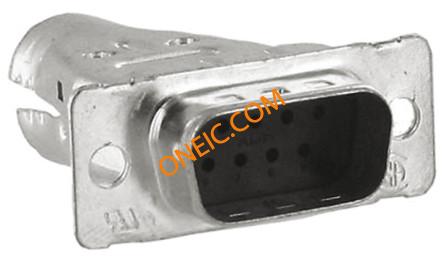

1658645-1

点击放大查看

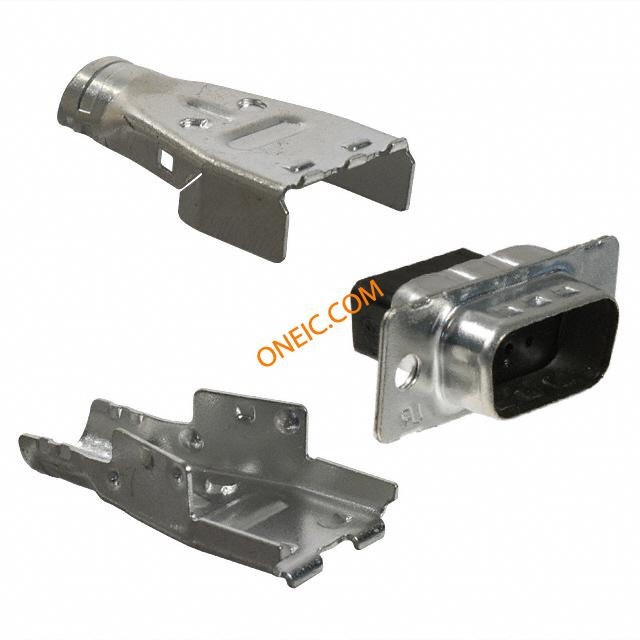

1658645-1

制造商
TE Connectivity Ltd.
描述Conn Housing PL 9 POS 2.76mm Crimp ST Bulk D-Sub Standard Connectors DSUB E09P CRIMP KIT Standard Cable Connectors CONN D-SUB PLUG 9POS W/O CONTACT AMPLIMITE HDP-20 cable Plug+Shield 9P Conn Housing PL 9 POS 2.76mm Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9ShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, D-SUB SHELL, PLUG, SIZE 1 Conn;D-Sub;CablePlug;9Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell;Nylon HDF-20 Series 9 Position Plug Crimp Snap Standard Cable Connector KIT,HDP-20,OVRMLD,PLUG,SIZE 1,
分类
连接器解决方案D-Sub连接器D-Sub连接器

商业参数

其他名称A31483产品类别D-Sub Standard Connectors
标准包装数量Bulk工厂包装数量100

合规参数

RoHSRoHS Compliant标准UL94V-0
海关税号85366990

电气参数

最小供电电压250VAC

机械参数

颜色Black间距2.76 mm
高度12.92 mm重量0.018
包装方式Bulk外壳尺寸1
导线线规20端接方式Crimp
触头类型Signal外壳颜色Black
安装类型Straight外壳镀层Tin
行程角度Straight连接器类型Plug for Male Contacts
法兰特征Housing/Shell (Unthreaded)安装样式Wire
排数2外壳材料（壳体）Steel
连接器样式D-Sub插入件材料Thermoplastic
本体材料:Steel屏蔽材料Steel
壳体材料Nylon总长度31.19 mm
主要材料D-Subminiature端接样式Crimp
触点数9介电材料Polyamide (PA), Nylon, Glass Filled
位数9外壳尺寸-插件:DE
外壳镀层厚度200µin (5.08µm)外壳材料及表面处理Steel, Tin Plated
外壳尺寸，连接器布局1 (DE, E)

产品信息

备注Contacts Not Provided类型Housing
连接器性别PL系列16586
产品特性Shielded制造商全称HDP-20
适用产品/相关产品:AMPLIMITE HDP-20 Series D Sub Contacts

环境参数

工作温度-55C to 105C

文档与媒体

1658645-1?RQPN=1658645-1
1688152.pdf
