点击放大查看

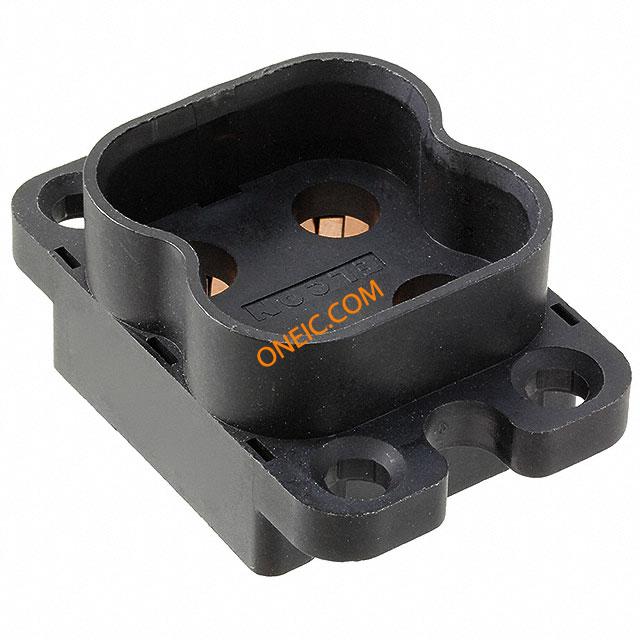

1648548-1
| 制造商 | |
| 描述 | Conn Housing PL 4 POS 18.41mm Crimp ST High Current ELCON Drawer Connectors Heavy Duty Power Connectors 295-0040-01100 Conn Housing PL 4 POS 18.41mm Crimp ST Product Highlights:HousingContact Size = 0Drawer Style = QuadPowerPinSize 0 Contact Configuration CONN HOUSING QUAD-PWR PIN |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 200/Contact A | ||
机械参数
| 颜色 | Black | 深度 | 27.94 mm |
| 间距 | 0.725" (18.42mm) | 高度 | 40.64 mm |
| 包装方式 | Bulk | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Housing for Male Pins |
| 排数 | 2 | 连接器样式 | Drawer |
| 连接器用途 | Plug | 壳体材料 | Thermoplastic |
| 总长度 | 63.5 mm | 触点数 | 2 |
| 位数 | 4 (Power) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | ||
