点击放大查看

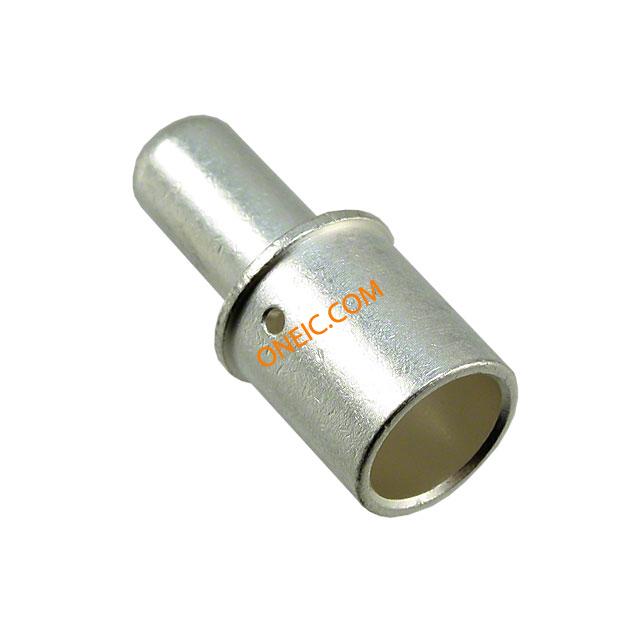

1766811-1
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount High Current ELCON Drawer Connectors CONN PIN SIZE #0 CRIMP Power to the Board CONTACT PIN #0 1766811-1 Contact PIN Crimp ST Cable Mount Product Highlights:ContactContact Size = 0PinTermination Type = Crimp (Standard)Not Hot Pluggable CONTACT, CRIMP, PIN, CRIMP CONTACT,PIN,#0 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 17668111 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 最大额定电流 | 200A | ||
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 导线线规 | 10 AWG | 端接方式 | Crimp |
| 触点尺寸 | :0 | 触头类型 | Power |
| 插针或插孔 | Pin | 连接器类型 | Connector Power |
| 接触镀层 | Silver | 触头材料 | Copper Alloy |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 接触件端接 | Crimp | 接触镀层厚度 | 200µin (5.08µm) |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | :- | 产品子类型 | Contacts |
