点击放大查看

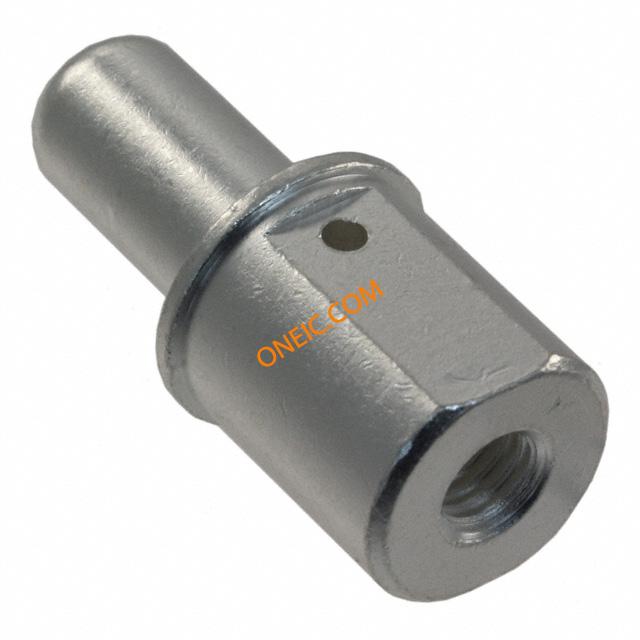

1766274-1
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount High Current ELCON Drawer Connectors CONN PIN #0 INT THREAD Power to the Board CONTACT PIN #0 High Current ELCON Drawer Connectors Product Highlights:ContactContact Size = 0PinTermination Type = M6 Internal ThreadNot Hot Pluggable CONTACT, PIN, SCREW CONTACT,PIN,#0 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装规格 | 100 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 最大额定电流 | 200A | ||
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 端接方式 | Crimp | 触点尺寸 | :0 |
| 触头类型 | Power | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | Connector Power |
| 接触镀层 | Silver | 排数 | 1 |
| 触头材料 | Copper Alloy | 端接样式 | Screw |
| 第一触头极性 | Pin (Male) | 触点数 | 1 |
| 接触件端接 | Screw Mount | 接触镀层厚度 | 200µin (5.08µm) |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | :- | 产品子类型 | Contacts |
| 适用产品/相关产品 | :Power Connectors | ||
