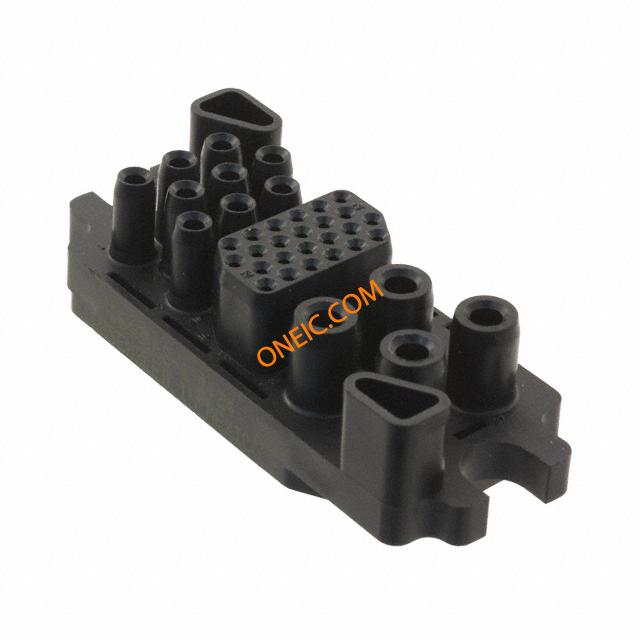

1648168-1
| 制造商 | |
| 描述 | Conn Housing RCP 9/24 POS Crimp ST Cable Mount High Power Drawer - Elcon CONN SOCKET MID-DWR 8/20/12 PCB Heavy Duty Power Connectors SCKT HOUSING CONN SIZE 8 12 20 Conn Housing RCP 9/24 POS Crimp ST Cable Mount Product Highlights:HousingContact Size = 8, 12, 20Drawer Style = MiddleSocketSize 8 + Size 12 + Size 20 Contact Configuration RECTANGULAR POWER CONNECTOR, RCPT, 37POS |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 30 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
| 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 75 | ||
机械参数
| 颜色 | Black | 深度 | 22.9 mm |
| 高度 | 33.3 mm | 重量 | 0 |
| 包装方式 | Bulk | 触点尺寸 | 8 / 12 / 20 |
| 触头类型 | Size 8 + Size 12 + Size 20 | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Housing for Female Sockets |
| 接触镀层 | :- | 连接器样式 | Receptacle |
| 连接器用途 | Receptacle | 触头材料 | :- |
| 壳体材料 | Thermoplastic - GF | 总长度 | 84.1 mm |
| 第一触头极性 | :- | 触点数 | 9/24 |
| 接触件端接 | :- | 位数 | 37 (24 + 13 Power) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | :- |
| 产品特性 | Mating Guide | 预加载 | No |
| 制造商全称 | Elcon | 产品子类型 | Connector |
| 抽屉总数 | Middle | ||
