点击放大查看

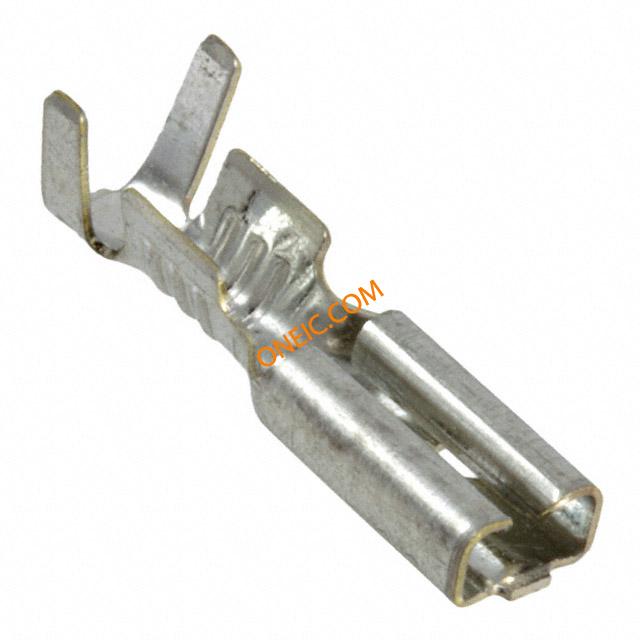

160668-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 15.5-20AWG RCP 15mm 4mm Tin Loose Piece Terminals 110 FASTIN-ON REC. Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON 110 FASTIN-ON REC. Quick Disconnect Terminal 15.5-20AWG RCP 15mm 4mm Tin Loose Piece Product Highlights:ReceptacleTab Fit = 2.79 x 0.79 mmWire Range = 0.50-1.50² [20-15] mm [AWG]Insulation Diameter = 2.00-3.10 [.079-.122] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TERMINAL, FASTON, 2.79X0.79MM Crimp,Faston,rcp,strt,F,15.5-20awg,loose TE Connectivity FASTIN-FASTON .110 系列 压接插座 , 2.79 x 0.79mm, 镀锡触芯 FF 110 REC 20-15 AWG PTPB LP |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 500 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Not Required | 深度 | 4 mm |
| 表面处理 | Pre-Tin | 重量 | 0.004 |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 2.79 x 0.79 [.110 x .031] | 厚度 | 0.25 [0.010] |
| 电缆类型 | Regular Wire | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.217" (5.50mm) | 导线线规 | 15.5-20 AWG |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | :2.79mm x 0.79mm |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 封装形式 | Single or Multiple | 壳体镀层 | Tin |
| 连接器样式 | Straight | 箔压接区域 | F-Crimp |
| 插入力 | Normal | 触头材料 | Brass |
| 绝缘颜色 | :- | 总长度 | FASTIN-FASTON .110 |
| 包装数量 | Loose Piece | 绝缘高度 | With |
| 绝缘直径 | 2.00-3.10 [.079-.122] | 绝缘材料 - 材质 | :Uninsulated |
| 线规或范围 - AWG | :20AWG | 线规或范围 - mm² | 0.50-1.50² [20-15.5] |
产品信息
| 备注 | According to DIN 46340, Part 1 | 连接器性别 | Female |
| 系列 | 110 | 产品子类型 | Receptacle |
