点击放大查看

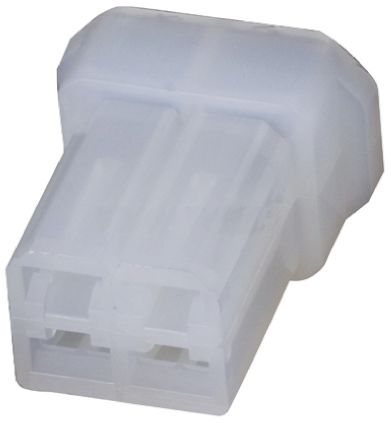

626056
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .110 4POS NATRL Crimp, Faston, housing, 2.79mm, 4 way Headers & Wire Housings HOUSING 4P .110 FASTIN-ON TAB Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle HousingNumber of Circuits = 4Tab Fit = 2.79 mmPackaging Method = Loose PieceColor = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on RECEPTACLE HOUSING, 4 WAY Crimp,Faston,housing,2.79mm,4way TE Connectivity AMP FASTIN-FASTON 系列 4 触点 尼龙 66 压接端子外壳 FASTIN-ON 110 HOUSING REC PA66 NATURAL |
| 分类 |
商业参数
| 标准包装数量 | Bulk | 工厂包装数量 | 10000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 量程（°/s） | :TE - FASTIN-FASTON Series | ||
机械参数
| 颜色 | Natural | 深度 | 18mm |
| 间距 | 5 mm | 宽度 | 11mm |
| 高度 | 11 mm | 长度 | 16mm |
| 重量 | 1 | 材料（通用） | Nylon |
| 包装方式 | Bulk | 插片宽度 | 2.79 [.110] |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 端子尺寸 | 0.110" (2.79mm) | 端子类型 | Quick Connect, Disconnect |
| 连接器类型 | Yes | 接触镀层 | :- |
| 排数 | 2 | 触头材料 | :- |
| 壳体材料 | Polyamide | 总长度 | FASTIN-FASTON .110 |
| 包装数量 | Loose Piece | 触点数 | 4 |
| 堆叠方向 | Top to Bottom and Side to Side | 位数 | 4 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | AMP FASTIN-FASTON | 产品子类型 | Receptacle Housing |
| 电路数 | 4 | 适用产品/相关产品 | 0.110" (2.79mm) Quick Connects |
文档与媒体
相关型号
737255-5
te connectivity / amp
Quick Disconnect Terminal 17-20AWG F Tin Strip Terminals FASTIN-FASTON RECEP 2 80 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN UNINS RECPT 17-20AWG 0.110 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:ReceptacleTab Fit = 2.79 x 0.81 mmWire Range = 0.50-1.00² [20-17] mm [AWG]Insulation Diameter = 2.00-3.30 [.079-.130] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FF 110 REC 0.5-1.0MM2 TPBR
160668-2
te connectivity / amp
Quick Disconnect Terminal 15.5-20AWG RCP 15mm 4mm Tin Loose Piece Terminals 110 FASTIN-ON REC. Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON 110 FASTIN-ON REC. Quick Disconnect Terminal 15.5-20AWG RCP 15mm 4mm Tin Loose Piece Product Highlights:ReceptacleTab Fit = 2.79 x 0.79 mmWire Range = 0.50-1.50² [20-15] mm [AWG]Insulation Diameter = 2.00-3.10 [.079-.122] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TERMINAL, FASTON, 2.79X0.79MM Crimp,Faston,rcp,strt,F,15.5-20awg,loose TE Connectivity FASTIN-FASTON .110 系列 压接插座 , 2.79 x 0.79mm, 镀锡触芯 FF 110 REC 20-15 AWG PTPB LP
63241-1
te connectivity / amp
Quick Disconnect Terminal 18-22AWG F 13.97mm 4.57mm Strip Terminals 110 FF RCPT 22-18 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RECEPT FAST 18-22 AWG .110 Quick Disconnect Terminal 18-22AWG F 13.97mm 4.57mm Strip Product Highlights:ReceptacleTab Fit = 2.79 x 0.51 mmWire Range = 0.30-0.90² [22-18] mm [AWG]Insulation Diameter = 2.03-3.05 [.080-.120] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CONN QC RCPT 18-22AWG 0.110 FF 110 REC 22-18AWG BR
170042-1
te connectivity / amp
Quick Disconnect Terminal 16-20AWG RCP 16.6mm 4.2mm Loose Piece Terminals .110 FASTIN-FASTON RECPT L.P. Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN UNINS RECPT 16-20AWG 0.110 Fastin-Faston Contact,rcp,0.50-1.40mm² Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:ReceptacleTab Fit = 2.79 x 0.51 mmWire Range = 0.50-1.40² [20-16] mm [AWG]Insulation Diameter = 2.00-3.00 [.079-.118] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on Fastin-FastonContact,rcp,0.50-1.40mm² TE Connectivity FASTIN-FASTON .110 系列 压接插座 , 2.79 x 0.51mm FF 110 REC 20-16AWG BR
1217281-3
te connectivity / amp
Quick Disconnect Terminal 20-24AWG F Reel Terminals RCPT TAB .110 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT TAB .110 24-20AWG STR Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:ReceptacleTab Fit = 2.79 x 0.81 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.27-2.03 [.050-.080] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FF 110 REC 24-20AWG BR
160173-2
te connectivity / amp
Quick Disconnect Terminal 20-22AWG RCP 3.7mm Tin Strip Terminals RECPT 2.79 x 0.79 mm Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT STR 22-20AWG .110 TIN FASTON, female, 2.79x0.79 Quick Disconnect Terminal 20-22AWG RCP 3.7mm Tin Strip Product Highlights:ReceptacleTab Fit = 2.79 x 0.79 mmWire Range = 0.30-0.60² [22-20] mm [AWG]Insulation Diameter = 1.30-2.00 [.051-.078] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FASTON,female,2.79x0.79 Terminal: flat; 2.8mm; 0.8mm; female; 0.3÷0.6mm2; crimped; tinned TE Connectivity FASTIN-FASTON .110 系列 压接插座 , 2.79 x 0.79mm, 镀锡触芯 FF 110 REC 22-20AWG TPBR
160684-2
te connectivity / amp
Quick Disconnect Terminal 17-20AWG F 14mm 4mm Tin Strip Terminals .110 SERIES FASTIN- FASTON REC Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN UNINS RECPT 17-20AWG 0.110 CONN QC RCPT 17-20AWG 0.110 FF 110 REC 0.5-1.0MM2 PTPBR
63241-3
te connectivity / amp
Quick Disconnect Terminal 18-22AWG F 13.97mm 4.57mm Pre-Tin Strip Terminals RCPT FASTIN- FASTON 110 SERIES Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN UNINS RECPT 18-22AWG 0.110 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:ReceptacleTab Fit = 2.79 x 0.51 mmWire Range = 0.30-0.90² [22-18] mm [AWG]Insulation Diameter = 2.03-3.05 [.080-.120] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FF 110 REC 22-18AWG PTBR
150572-2
te connectivity / amp
Quick Disconnect Terminal 16-20AWG F 15.37mm 3.94mm Tin Strip Terminals .110 MINI-FASTON Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN UNINS RECPT 16-20AWG 0.110 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:ReceptacleTab Fit = 2.79 x 0.79 mmWire Range = 0.50-1.40² [20-16] mm [AWG]Insulation Diameter = 2.00-3.10 [.079-.122] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CONN QC RCPT 16-20AWG 0.110 MINI FASTON 110 REC 20-16 AWG TPBR
160366-2
te connectivity / amp
Quick Disconnect Terminal 20-22AWG RCP 14.5mm 2.9mm Tin Strip Terminals RECPT 2.79 x 0.51 mm Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT STR 20-22AWG .110 TIN FASTON, female, 2.79x0.51 Receptacle contact FASTIN-FASTON (REEL) Quick Disconnect Terminal 20-22AWG RCP 14.5mm 2.9mm Tin Strip Product Highlights:ReceptacleTab Fit = 2.79 x 0.51 mmWire Range = 0.30-0.60² [22-20] mm [AWG]Insulation Diameter = 1.30-2.00 [.051-.078] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CONN QC RCPT 20-22AWG 0.110 FASTON,female,2.79x0.51 TE Connectivity FASTIN-FASTON .110 系列 压接插座 , 2.79 x 0.51mm, 镀锡触芯 FF 110 SR. REC 22-20AWG TPBR
170015-1
te connectivity / amp
Quick Disconnect Terminal 16-20AWG RCP Strip Terminals .110 FASTIN-FASTON Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN UNINS RECPT 16-20AWG 0.110 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:ReceptacleTab Fit = 2.79 x 0.51 mmWire Range = 0.50-1.40² [20-16] mm [AWG]Insulation Diameter = 2.00-3.00 [.079-.118] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CONN QC RCPT 16-20AWG 0.110 FF 110 REC 20-16AWG BR
62572-2
te connectivity / amp
Quick Disconnect Terminal 16-20AWG F 13.97mm 4.57mm Strip Terminals 110 FF RCPT 20-16 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT FASTON STRGHT 20-16AWG Quick Disconnect Terminal 16-20AWG F 13.97mm 4.57mm Strip Product Highlights:ReceptacleTab Fit = 2.79 x 0.79 mmWire Range = 0.50-1.40² [20-16] mm [AWG]Insulation Diameter = 2.03-3.05 [.080-.120] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on

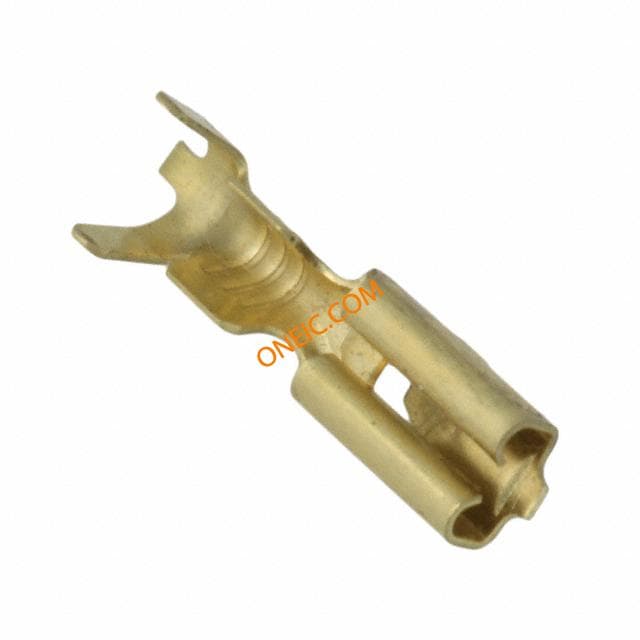

62572-1
