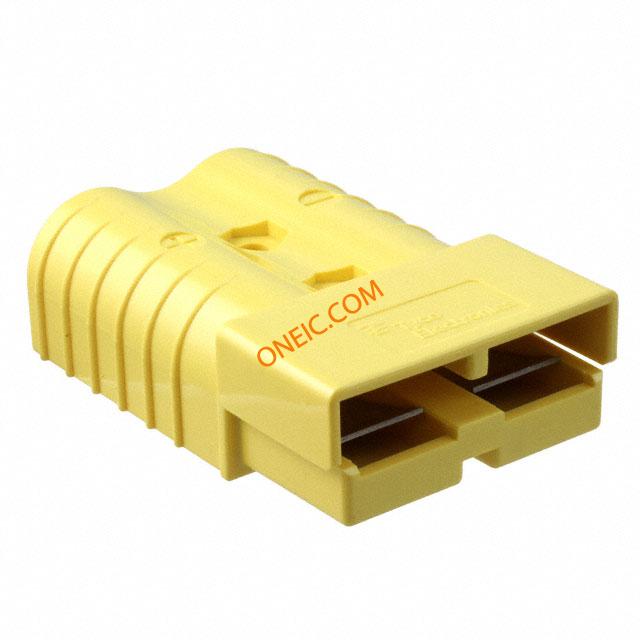

点击放大查看
1604050-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS Crimp ST Power Connectors CONN HOUSING 2POS YELLOW Power to the Board HSG SUB-ASY YELLOW 350A Conn Housing RCP 2 POS Crimp ST Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant 350A HOUSING SUB-ASSY,YELLOW |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bag |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 600 | 最大额定电流 | 350 A |
机械参数
| 颜色 | Yellow | 宽度 | 69.9 mm [ 2.75 in ] |
| 高度 | 33.2 mm [ 1.307 in ] | 长度 | 107.46 mm [ 4.23 in ] |
| 密封型 | 不密封 | 包装方式 | Bulk |
| 壳体颜色 | 黄色 | 电缆类型 | 分离式导线 |
| 触头类型 | Non Gendered | 安装类型 | Straight |
| 连接器类型 | Non Gendered | 紧固类型 | Spring Retention |
| 排数 | 1 | 壳体材料 | Polycarbonate (PC) |
| 包装数量 | 12 | 面板安装类型 | 不带 |
| 触点数 | 2 | 堆叠方向 | Side to Side |
| 接触件端接 | Crimp | 绝缘直径 | 24 mm [ .945 in ] |
| 位数 | 2 | 外壳尺寸-插件 | 插头/插座 |
| 绝缘材料 - 材质 | Polycarbonate (PC) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品子类型 | 护套 |
| 应用细节 | Power | ||
环境参数
| 工作温度 | -20°C ~ 105°C | ||
