点击放大查看

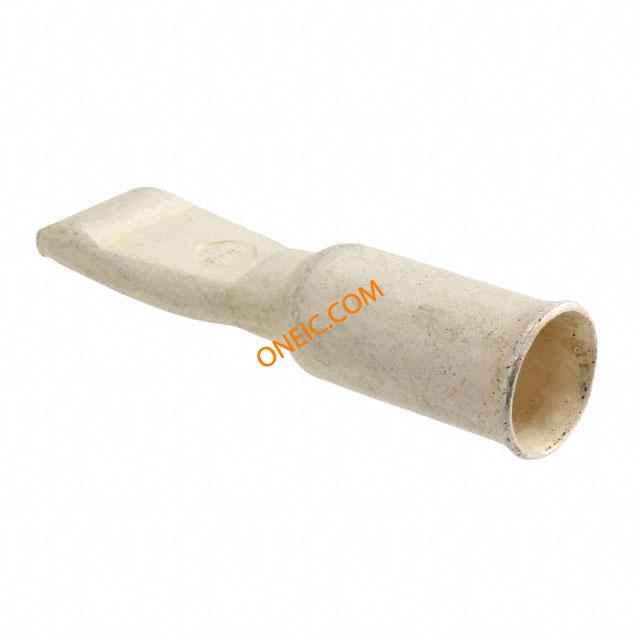

1604053-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Power Connectors CONN TERM NON GENDERED 3/0AWG Power to the Board CONTACT 350A 3/0AWG Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant TERM BLADE NON-GENDR 3/0AWG CONTACT,350A,3/0 AWG,L/P |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bag |
| 工厂包装数量 | 175 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 600 | 最大额定电流 | 350 A |
| 连接器类型 - 电压输入 | 冷间锻造 | ||
机械参数
| 镀层 | 银 | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 导线线规 | 3/0 AWG |
| 触头类型 | Non Gendered | 触点形状 | 直式 |
| 安装类型 | 闭式压线筒 | 释放力 | 带有 |
| 电缆直径 | 49338 – 118412 | 连接器类型 | 线到线 |
| 接触镀层 | Silver | 外壳材料（壳体） | 镍 |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 包装数量 | 175 | 端接样式 | 插针/插座 |
| 接触件端接 | Crimp | 接触镀层厚度 | 50 µm [ 1.27 µin ] |
| 线规或范围 - AWG | 3 | 护套（绝缘）厚度 | 50 µm [ 1.27 µin ] |
产品信息
| 类型 | Machined | 产品子类型 | 端子 |
| 应用细节 | Power | ||
环境参数
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | ||
