点击放大查看

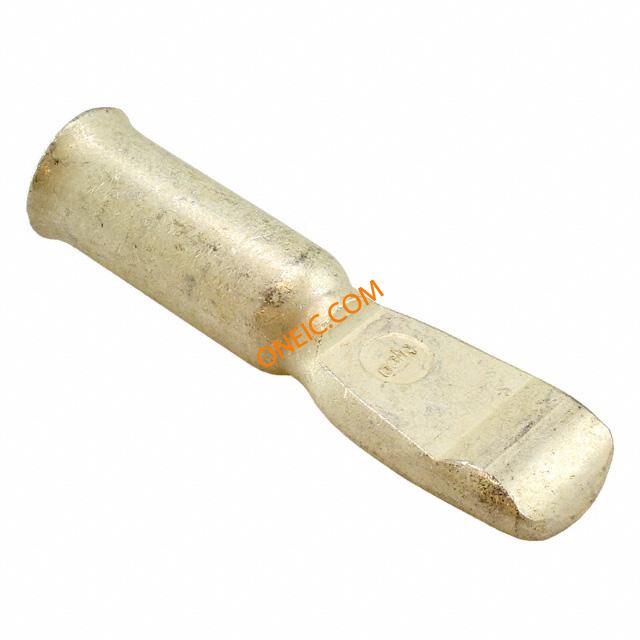

1604054-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Power Connectors CONN TERM NON GENDERED 2/0AWG Power to the Board CONTACT 350A 2/0AWG Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant TERM BLADE NON-GENDR 2/0AWG CONTACT,350A,2/0 AWG,L/P |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 600 | 最大额定电流 | 350 A |
| 连接器类型 - 电压输入 | 冷间锻造 | ||
机械参数
| 镀层 | 银 | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 导线线规 | 2/0 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 触点形状 | 直式 | 安装类型 | 闭式压线筒 |
| 释放力 | 带有 | 电缆直径 | 67100 – 118412 |
| 连接器类型 | Connector Power | 接触镀层 | Silver |
| 外壳材料（壳体） | 镍 | 插入件材料 | 铜合金 |
| 触头材料 | Copper | 包装数量 | 175 |
| 端接样式 | 插针/插座 | 接触件端接 | Crimp |
| 接触镀层厚度 | 50 µm [ 1.27 µin ] | 线规或范围 - AWG | 2 |
| 护套（绝缘）厚度 | 50 µm [ 1.27 µin ] | ||
产品信息
| 类型 | Machined | 连接器性别 | PIN |
| 产品子类型 | 端子 | 应用细节 | Power |
环境参数
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | ||
相关型号
1604050-4
te connectivity / amp
Conn Housing RCP 2 POS Crimp ST Power Connectors CONN HOUSING 2POS GRAY Power to the Board HSG SUB-ASY GRAY 350A Conn Housing RCP 2 POS Crimp ST Product Highlights:Housing350 AMP SeriesConnector Type = 2-Pole Battery ConnectorCurrent = 350 Amps.Housing Color = GraySearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant 350A HOUSING SUB-ASSY,GRAY
1604050-3
te connectivity / amp
Conn Housing RCP 2 POS Crimp ST Power to the Board HSG SUB-ASY RED 350A Power Connectors CONN HOUSING 2POS RED Conn Housing RCP 2 POS Crimp ST Product Highlights:Housing350 AMP SeriesConnector Type = 2-Pole Battery ConnectorCurrent = 350 Amps.Housing Color = RedSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant 350A HOUSING SUB-ASSY,RED
1604050-1
te connectivity / amp
Conn Housing RCP 2 POS Crimp ST Power Connectors CONN HOUSING 2POS YELLOW Power to the Board HSG SUB-ASY YELLOW 350A Conn Housing RCP 2 POS Crimp ST Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant 350A HOUSING SUB-ASSY,YELLOW
1604050-2
te connectivity / amp
Conn Housing RCP 2 POS Crimp ST Power to the Board HSG SUB-ASY ORANGE 350A Power Connectors CONN HOUSING 2POS ORANGE 350A HOUSING SUB-ASSY,ORANGE 350A HOUSING SUB-ASSY,ORANGE Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant

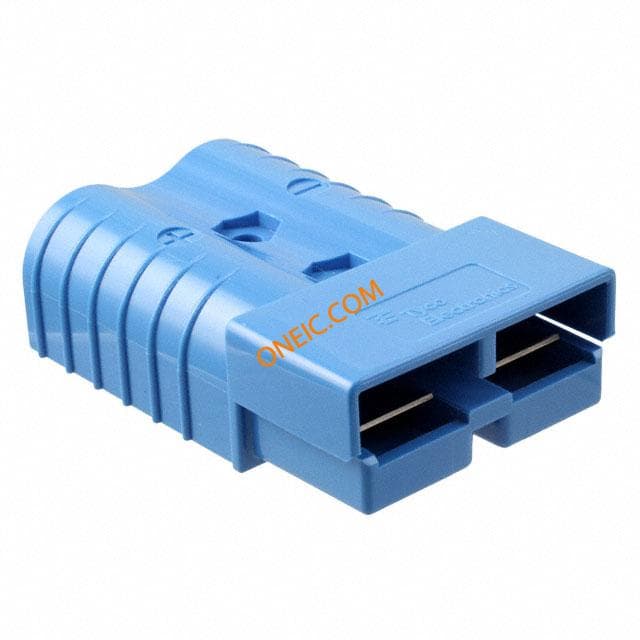

1604050-5
