点击放大查看

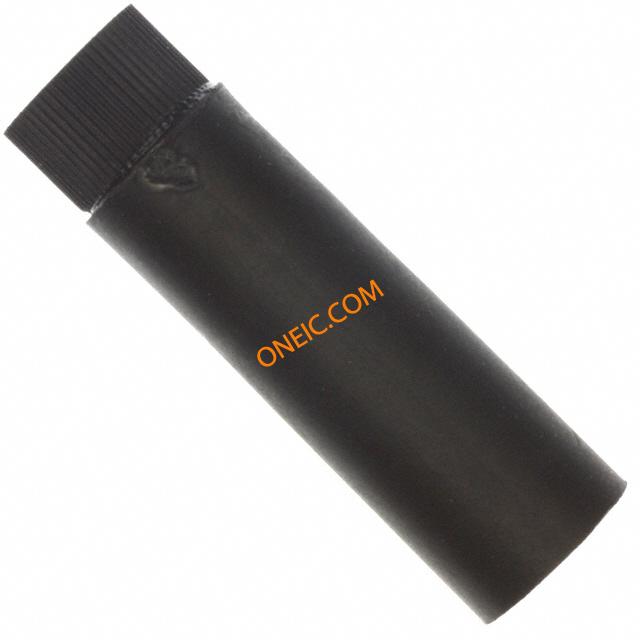

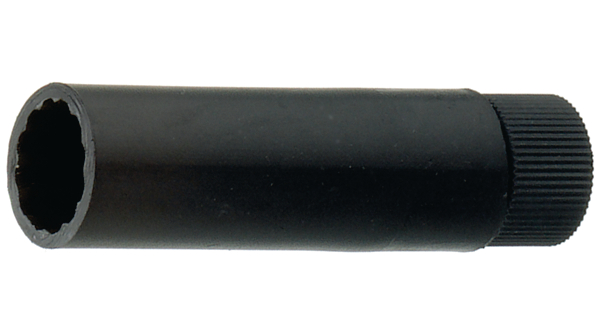

1546997-1
| 制造商 | |
| 描述 | Connector Accessories Heat Shrink Boots Miniature CPC (Circular Plastic Connector) CONN CPC HEAT SHRINK SIZE 8 STR Strain relief size 8, Min CPC Heat Shrink Tubing and Sleeves HS TUBING SIZE 8 FOR MINI CPC Connector Accessories Heat Shrink Boots Product Highlights:Heat Shrink SleeveShell Size = 8Search Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector STRAIN RELIEF, CIRCULAR, SIZE 8 Shrink sleeve for 4pin, 1546997-1, TE Connectivity STR RLF ASSY,TUBING,SIZE 8 |
| 分类 |
商业参数
| 商标名 | CPC Miniature | 产品类别 | Heat Shrink Tubing and Sleeves |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | Not applicable / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 重量 | 0.05 |
| 直径 | 15.24 mm | 材料（通用） | Nylon |
| 连接器护套颜色 | :Black | 外壳尺寸 | 8 |
| 应变范围（增益可调） | Black | 收缩比 | :- |
| 总长度 | 50.8 mm | 内径（直径） | 0.125 in to 0.375 in |
| 外壳尺寸-插件 | 8 | 绝缘材料 - 材质 | Polyolefin, Polyamide |
| 总供货长度 | :50.8mm | 恢复后内径（裸线） | 0.25 in |
| 非扩张内径 | :12.7mm | ||
产品信息
| 备注 | Heat-Shrinkable | 类型 | Boot |
| 系列 | CPC | CAD图纸 | 3D CAD Model |
| 产品子类型 | Heat Shrink Sleeve | 附件类型 | Heat Shrink Sleeve |
| 射频系列/标准 | 1546997 | 适用产品/相关产品 | Miniature CPC |
环境参数
| 温度 | + 250 F | 工作温度 | - 67 F to + 230 F |
