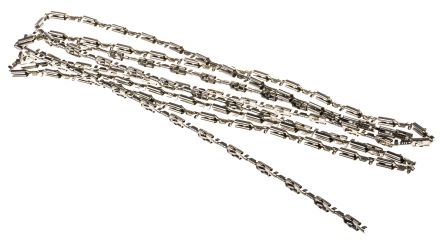

点击放大查看
1217281-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 20-24AWG RCP 13.97mm 3.71mm Pre-Tin Reel Terminals SKT STR 24-20AWG TIN Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN SOCKET STR 24-20AWG TIN Receptacle contact FASTIN-FASTON (REEL) Fastin-Faston Contact,rcp,0.20-0.60mm² Quick Disconnect Terminal 20-24AWG RCP 13.97mm 3.71mm Pre-Tin Reel Product Highlights:ReceptacleTab Fit = 2.79 x 0.81 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.27-2.03 [.050-.080] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on Fastin-FastonContact,rcp,0.20-0.60mm² TE Connectivity FASTIN-FASTON .110 系列 压接插座 , 2.79 x 0.8mm, 镀锡触芯 FF 110 REC 24-20AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A100451CT |
| 产品类别 | Terminals | 标准包装数量 | 9,000 |
| 工厂包装数量 | 9000 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 最大频率 | Single | 开关功能 | 快速断开插针 |
机械参数
| 表面处理 | Pre-Tin | 长度 | 13.97mm |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 2.79 x 0.81 [.110 x .032] | 电缆类型 | Regular Wire |
| 绝缘类型 | Not Insulated | 插片长度 | 0.250" (6.35mm) |
| 导线线规 | 24-20 | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 0.6mm² |
| 电缆材料 | Stranded | 连接器类型 | Yes |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 连接器用途 | Wire & Cable | 箔压接区域 | F-Crimp |
| 插入件材料 | 黄铜 | 插入力 | Normal |
| 厚度（最大） | .228 | 触头材料 | Brass |
| 总长度 | FASTIN-FASTON .110 | 包装数量 | Reel |
| 导线端接方式 | No | 绝缘高度 | With |
| 端接样式 | Crimp | 适用端子尺寸 | 1.27 – 2.03 mm [ .0499 – .0799 in ] |
| 绝缘直径 | 1.27-2.03 [.050-.080] | 绝缘材料 - 类型 | Polyvinyl Chloride (PVC) |
| 焊盘布局尺寸 | 2.79 x 0.8mm | 法兰上方插针尺寸 | 2.79 mm [ .11 in ] |
| 法兰下方引脚尺寸 | .8 mm [ .032 in ] | 堆叠高度（配合） | 1.07 |
| 线规或范围 - AWG | 20AWG | 线规或范围 - mm² | 0.20-0.60² [24-20] |
产品信息
| 类型 | Receptacle | 连接器性别 | Female |
| 系列 | 110 | 产品子类型 | Receptacle |
